22311A

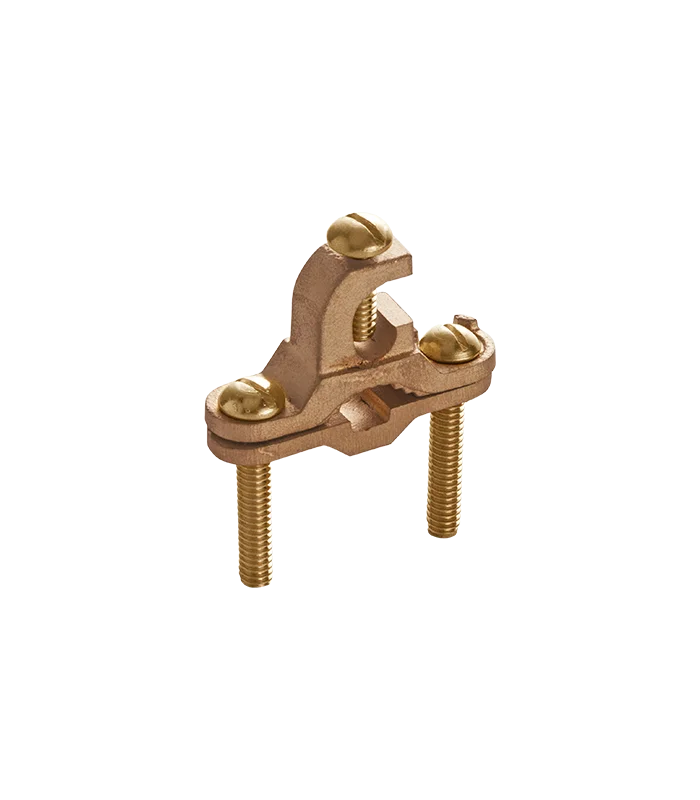

OEC 22311A, Bronze, Ground Clamp, Lay In, Conductor Range 10 – 2, 3/8 – 1 in Rebar Size, 3/8 – 1 in Ground Rod Size, 1/2 – 1 in Pipe Size

Features

  • Connectors are suitable for direct burial application in earth and concrete
  • Provides maximum conductivity and strength

Available on backorder

Compare
Categories: ,
General Specification
Product Description Bronze, Ground Clamp, Lay In, Conductor Range 10 – 2, 3/8 – 1 in Rebar Size
Catalog ID 22311A
UPC 840449607763
Application Ground Clamp Connector
Brand OEC
Product Specification
Standard Material Cast Copper Alloy
Standard Finish Natural
Dimensions
Product Length 2.26 in
Product Width 0.65 in
Product Height 2.30 in
Pipe Size 1/2 – 1 in
Rebar Size 1/2 – 1 in
Rod Size 3/8 – 1 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
CU Conductor Range (Primary, run, main, line) 10 – 2 AWG
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
