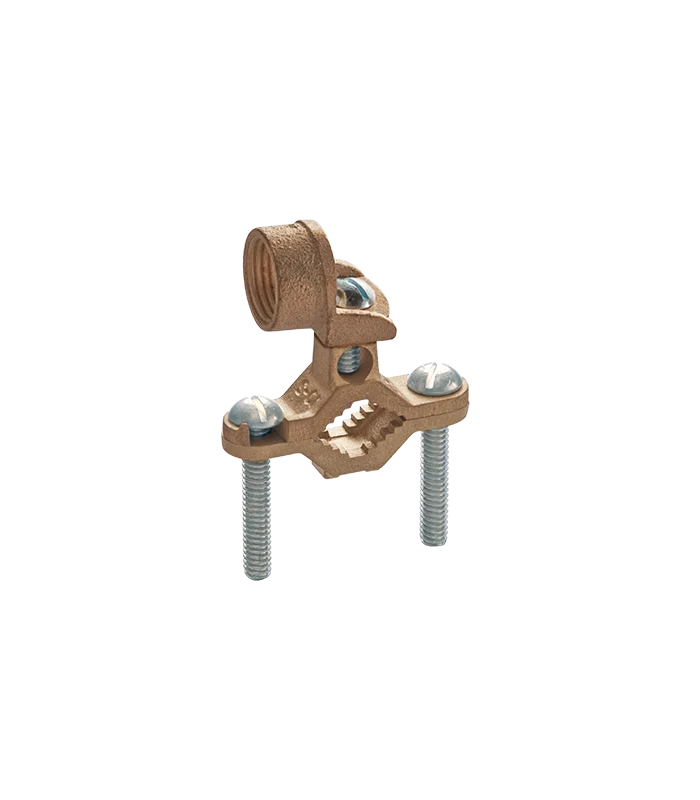

OEC 22306, Bronze, Ground Clamp with Adapter, Conductor Range 2 – 10, 1 – 1/4 – 2 in Pipe Size, 1 in HUB Size

Features

  • Supplied with steel screw plated for corrosion resistance
  • Connectors are suitable for direct burial application in earth and concrete

Available on backorder

Compare
Categories: ,
General Specification
Product Description Bronze, Ground Clamp with Adapter, Conductor Range 2 – 10, 1 – 1/4 – 2 in Pipe Size
Catalog ID 22306
UPC
Application Ground Clamp Connector
Brand OEC
Product Specification
Standard Material Cast Copper Alloy
Standard Finish Natural
Dimensions
Product Length 3.58 in
Product Width 0.81 in
Product Height 5.33 in
Pipe Size 1 – 1/4 – 2 in
Hub Size 1 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
CU Conductor Range (Primary, run, main, line) 2 – 10 AWG
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
