WRB505
Back to products
WRB505AB

WRB505BL

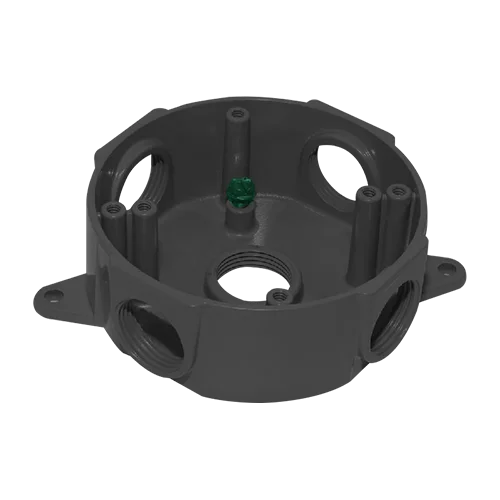

OEC Dry-Shield® WRB505BL, Round Gang Weatherproof Box, (5) 1/2 in Outlets, 2.10 in Deep, Die-Cast Aluminum, 16 Cu.in, Black

Features

  • Durable die-cast aluminum construction provides a long product life.
  • Precision cast and machined surfaces allow safer wire-pulling.
  • Mounting lugs for a variety of mounting methods.
  • Available in gray, black, bronze and white.

Available on backorder

Catalog
Compare
Category:
General Specification
Product Description Round Gang Weatherproof Box, (5) 1/2 in Outlets, 2.10 in Deep, Die-Cast Aluminum, 16 Cu.in, Black
Catalog ID WRB505BL
UPC
Application Wet Locations
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Standard Material Die Cast Aluminum
Standard Finish Powder Coated
Color Black
Number of Gangs 2 Gang
Outlets Holes 5-1/2 in
Capacity 16 Cu.in
Dimensions
Product Height 5.50 in
Product Width 4.50 in
Product Depth 1.40 in
Certifications and Compliance
cULus Yes
Standard NEMA 3R
RoHS Yes
