STBA98110
Back to products
STBA98110B

STBA98110A

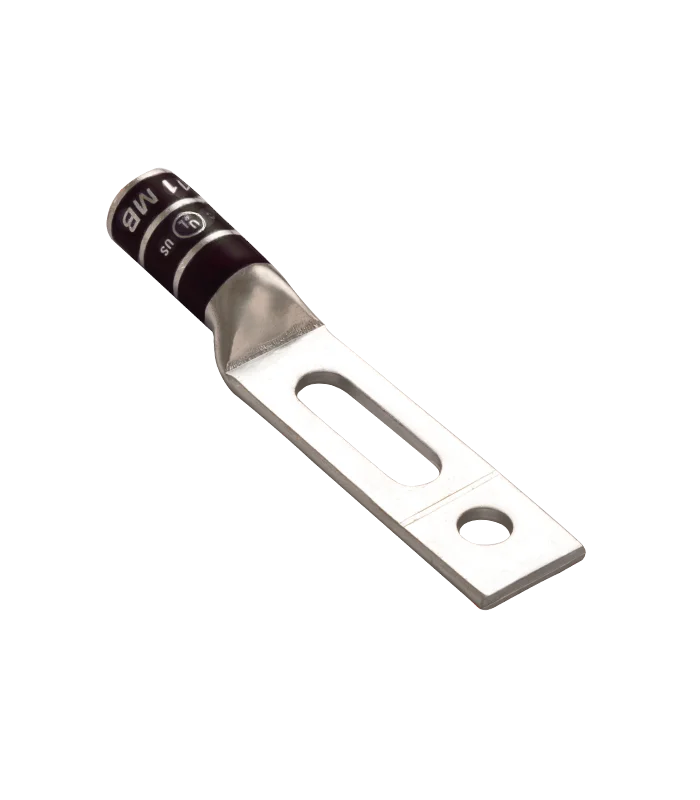

OEC STBA98110A, 750 Kcmil, 3/8 in Stud, 1 in Hole Spacing, Copper, Two Hole Long Barrel Compression Lug, Slotted Tang, Break-Away, Compact Class B, C, Flex Class G, H, I, K, M & DLO, Color Coded, Cu Only

Features

  • Manufactured from high strength seamless copper tubing
  • Chamfered entry
  • Color coded die index and crimp marks
  • Electro-Tin plated for corrosion resistance
  • Inspection window to ensure full cable insertion
  • UL486A/B Listed for Wire Connectors
  • Listed for use with class B & C, flex class G, H, I, K, M & DLO cable

Available on backorder

Catalog
Compare
Category:
General Specification
Product Description 750 Kcmil, 3/8 in Stud, 1 in Hole Spacing, Copper, Two Hole, Long Barrel Compression Lug, Slotted Tang, Color Coded, Die Index
Catalog ID ST98110A
UPC
Application Wire Termination
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Copper
Conductor Material Copper Only
Standard Material Copper
Standard Finish Electro Tin plated
Color Black
Tang Type Slotted Tang
Barrel Type Long
Barrel Style Chamfered
No of Holes 2
Dimensions
Product Length 5.12 in
Barrel Length 2.64 in
Tang width 1.90 in
Tang Thickness 0.27 in
Stud Size 3/8 in
Stud Hole 0.41 in
Hole Spacing 1 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
CU Compact Class-B, C #750 Kcmil
CU Compact Class-B, C Range #750 Kcmil
Expanded Conductor Range #750 – #500
Flex Conductor Range #600 G, H, I, M, 646 DLO
Certifications and Compliance
cULus Yes
Standard 486A/B
CSA Yes
RoHS Yes
