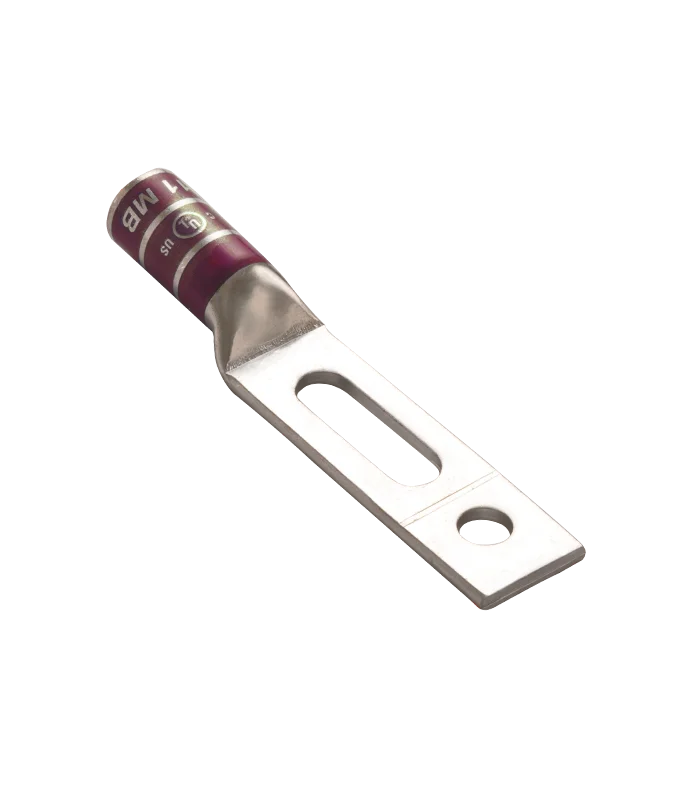

OEC STBA98090, 2 AWG, 1/2 in Stud, 1-3/4 in Hole Spacing, Copper, Two Hole Long Barrel Compression Lug, Slotted Tang, Break-Away, Compact Class B, C, Flex Class G, H, I, K, M & DLO, Color Coded, Cu Only

Features

  • Manufactured from high strength seamless copper tubing
  • Chamfered entry
  • Color coded die index and crimp marks
  • Electro-Tin plated for corrosion resistance
  • Inspection window to ensure full cable insertion
  • UL486A/B Listed for Wire Connectors
  • Listed for use with class B & C, flex class G, H, I, K, M & DLO cable

Available on backorder

Catalog
Compare
Category:
General Specification
Product Description 2 AWG, 1/2 in Stud, 1-3/4 in Hole Spacing, Copper, Two Hole, Long Barrel Compression Lug, Slotted Tang, Color Coded, Die Index
Catalog ID ST98090
UPC
Application Wire Termination
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Copper
Conductor Material Copper Only
Standard Material Copper
Standard Finish Electro Tin plated
Color Brown
Tang Type Slotted Tang
Barrel Type Long
Barrel Style Chamfered
No of Holes 2
Dimensions
Product Length 4.25 in
Barrel Length 1.10 in
Tang width 0.81 in
Tang Thickness 0.08 in
Stud Size 1/2 in
Stud Hole 0.53 in
Hole Spacing 1-3/4 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
CU Compact Class-B, C #2 AWG
CU Compact Class-B, C Range #2 AWG
Expanded Conductor Range #2 – #6
Flex Conductor Range #4 G, H, I, K, M, DLO
Certifications and Compliance
cULus Yes
Standard 486A/B
CSA Yes
RoHS Yes
