SBA225

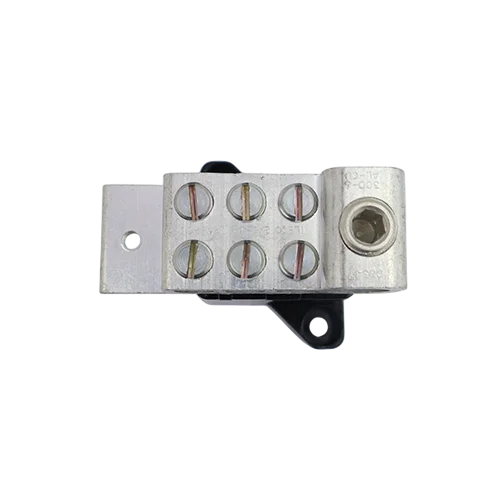

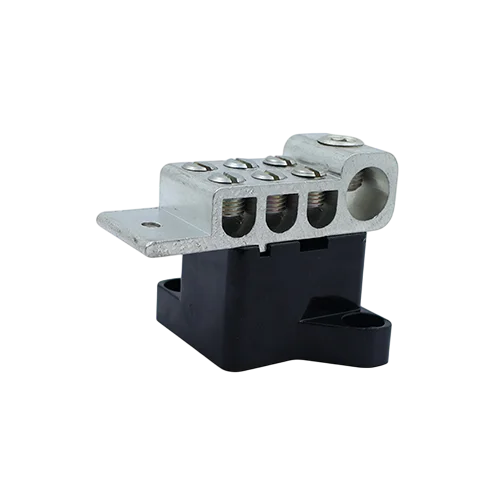

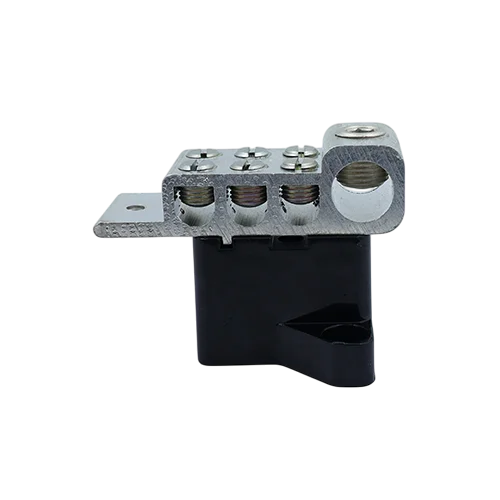

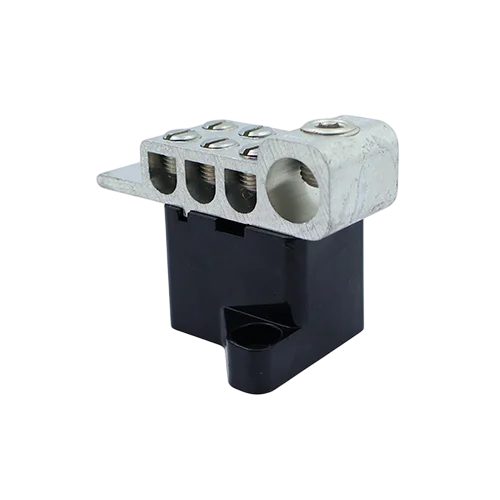

OEC SBA225, Standard Splitter Block Assembly, Conductor Range 6 to 300, 225 Amp

Features

  • Each block has six secondary’s
  • 600 V Cu/Al rated

Available on backorder

Compare
Categories: ,
General Specification
Product Description Standard Splitter Block Assembly, Conductor Range 6 to 300, 225 Amp
Catalog ID SBA225
UPC
Application Circuit Distribution
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Mechanical
Connection Type Screw
Conductor Type Aluminium/Copper
Standard Material Aluminium
Standard Material Electro-tin Plated
Electrical Ratings
Voltage Rating 600 V
Conductor Related
Main Lug Conductor Size 6 AWG to 300 kcmil
Branch Lug Conductor Size 14 to 2/0 AWG
AL Conductor Str Range 6 AWG, 4 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG, 250 kcmil, 300 kcmil
AL Conductor Str Size 6 AWG ? 300 kcmil
CU Conductor Sol/Str Range 6 AWG, 4 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG, 250 kcmil, 300 kcmil
CU Conductor Sol/Str Size 6 AWG ? 300 kcmil
Certifications and Compliance
cULus Under UL
