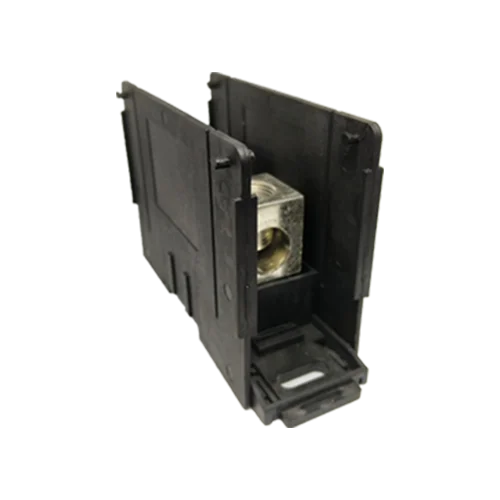

OEC PDBU-22-600-1, Power Distribution Blocks-Type PDBU, Dual Rated, Line Conductor Range 600 – 4, Load Conductor Range 600 – 4, 2 Ports Line Side, 2 Ports Load Side

Features

  • Snapbolock offers a modular design that is easy to assemble
  • UL 1953 listed (QPQS) also listed for UL1059 (XCFR2)
  • UL assigned short circuit current rating 100k AMP
  • Multiple conductor capability
  • Dual rated for copper and aluminum conductor
  • Range taking design to accommodate cable up to 750 MCM
  • Finger safe style

Available on backorder

Catalog
Compare
Categories: ,
General Specification
Product Description Power Distribution Blocks-Type PDAU, Dual Rated
Catalog ID PDBU-22-600-1
UPC
Application Industrial Control Feeder
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Standard Material Aluminum
Standard Finish Tin Plated
Screws Aluminum, Steel
No of Poles 1
Dimensions
Product Length 5.77 in
Product Width 2.95 in
Product Height 3.74 in
Electrical Ratings
Amperage Rating Per Pole 840
Voltage – Maximum 600 V
Voltage Rating 600 V
Temperature Rating
Temperature Rating 90°C
Conductor Related
AL Conductor Size (Primary, Main, Line) 600 Kcmil – 4 AWG
AL Conductor Size (Secondary, Tap, Load) 600 Kcmil – 4 AWG
CU Conductor Size (Primary, Main, Line) 600 Kcmil – 4 AWG
CU Conductor Size (Secondary, Tap, Load) 600 Kcmil – 4 AWG
Certifications and Compliance
cULus Yes
RoHS Yes
