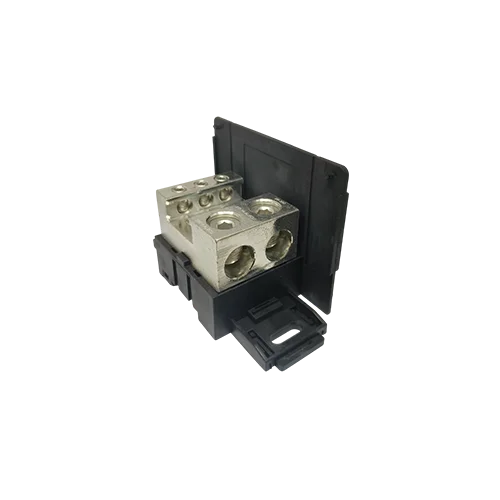

PDAU-11-2/0-3

OEC PDAU-22-2/0-3, Power Distribution Blocks-Type PDAU, Dual Rated, Line Conductor Range 2/0 – 14, Load Conductor Range 2/0 – 14, 2 Port Line Side, 2 Ports Load Side, 3 Pole

Features

  • Manufactured from high strength aluminum alloy
  • Electro-Tin plated for corrosion resistance
  • UL486A/B Listed for Wire Connectors
  • UL467 Listed for grounding and bonding applications
  • CSA certified to standard 22.2
  • Suitable for use with either copper or aluminum conductors
  • Provides low contact resistance

Available on backorder

Catalog
Compare
Category:
General Specification
Product Description Power Distribution Blocks-Type PDAU, Dual Rated
Catalog ID PDAU-11-2/0-3
UPC
Application Industrial Control Feeder
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Standard Material Aluminum
Standard Finish Tin Plated
Screws Aluminum, Steel
No of Poles 3
Dimensions
Product Length 3.56 in
Product Width 2.88 in
Product Height 2.56 in
Electrical Ratings
Amperage Rating Per Pole 175
Voltage – Maximum 600 V
Voltage Rating 600 V
Temperature Rating
Temperature Rating 90°C
Conductor Related
AL Conductor Size (Primary, Main, Line) 2/0 – 14 AWG
AL Conductor Size (Secondary, Tap, Load) 2/0 – 14 AWG
Certifications and Compliance
cULus Yes
RoHS Yes
