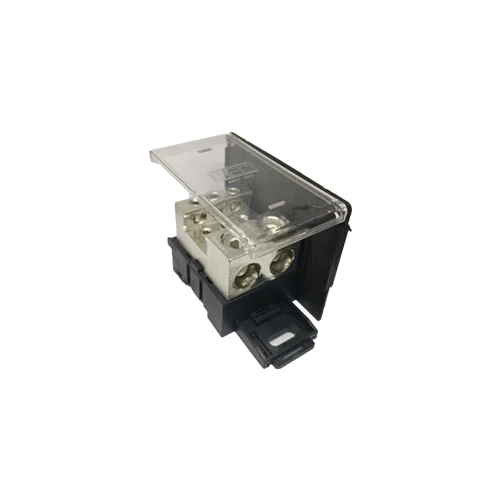

OEC PDA-212-350-1, Power Distribution Blocks-Type PDA, Dual Rated, Line Conductor Range 350 – 6, Load Conductor Range 4 – 14, 2 Port Line Side, 12 Ports Load Side

Features

  • Snapbolock offers a modular design that is easy to assemble
  • UL 1953 listed (QPQS) also listed for UL1059 (XCFR2)
  • UL assigned short circuit current rating 100k AMP
  • Multiple conductor capability
  • Dual rated for copper and aluminum conductor
  • Range taking design to accommodate cable up to 750 MCM
  • Finger safe style

Available on backorder

Catalog
Compare
Categories: ,
General Specification
Product Description Power Distribution Blocks-Type PDA, Dual Rated
Catalog ID PDA-212-350-1
UPC
Application Industrial Control Feeder
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Standard Material Aluminum
Standard Finish Tin Plated
Screws Aluminum, Steel
No of Poles 1
Dimensions
Product Length 5.77 in
Product Width 2.67 in
Product Height 3.74 in
Electrical Ratings
Amperage Rating Per Pole 620
Voltage – Maximum 600 V
Voltage Rating 600 V
Temperature Rating
Temperature Rating 90°C
Conductor Related
AL Conductor Size (Primary, Main, Line) 350 Kcmil – 6 AWG
AL Conductor Size (Secondary, Tap, Load) 4 – 12 AWG
CU Conductor Size (Primary, Main, Line) 350 Kcmil – 6 AWG
CU Conductor Size (Secondary, Tap, Load) 4 – 14 AWG
Certifications and Compliance
cULus Yes
RoHS Yes
