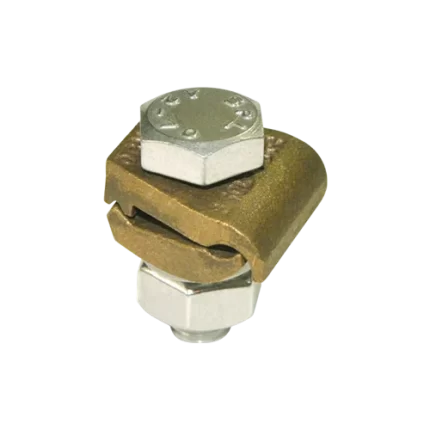

OGMS-4
Back to products
OGMS-6

OGMS-5

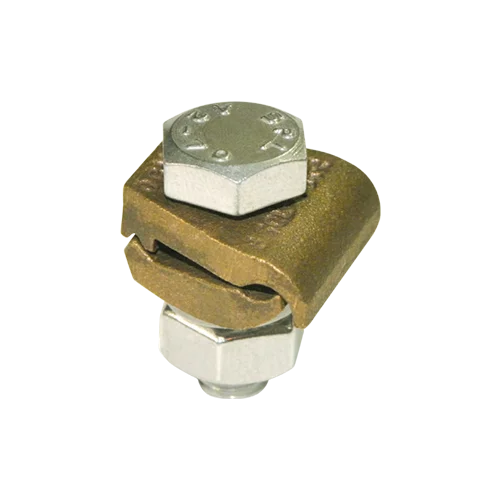

OEC OGMS-5, Bronze, Ground Clamps Connector-Types OGM and OGMS, Conductor Range 750 – 500, 5/8 in Bolt Size

Features

  • Lay in feature allows continuous loop wiring
  • Connects wide range of two parallel conductors
  • Separates conductors to bar surface

Available on backorder

Compare
Categories: ,
General Specification
Product Description Bronze, Ground Clamps Connector-Types OGM and OGMS, Conductor Range 750 – 500,
Catalog ID OGMS-5
Application Ground Clamp Connector
UPC
Brand OEC
Product Specification
Connector OGM and OGMS
Standard Material Copper
Standard Finish Natural
Dimensions
Product Length 2.86 in
Product Width 1.75 in
Product Height 3.03 in
Bolt Size 5/8 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
Conductor Size 750 – 500 Kcmil
CU Conductor Size 500 Kcmil, 600 Kcmil, 750 Kcmil, 800 Kcmil, 900 Kcmil, 1000 Kcmil
CU Sol Conductor Range 500 – 750 Kcmil
CU Str Conductor Range 500 Kcmil, 600 Kcmil, 750 Kcmil, 800 Kcmil, 900 Kcmil, 1000 Kcmil
CU Str Conductor Range 500 – 750 Kcmil
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
