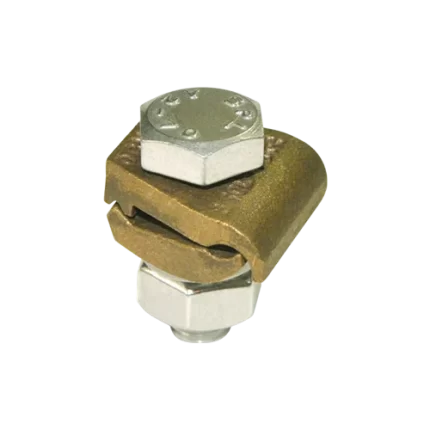

OGMS-3
Back to products
OGMS-5

OGMS-4

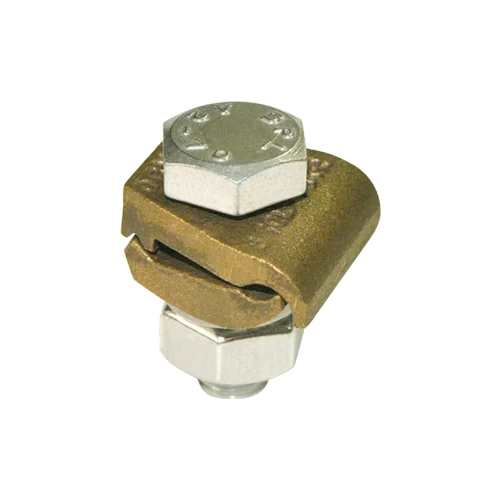

OEC OGMS-4, Bronze, Ground Clamps Connector-Types OGM and OGMS, Conductor Range 500 – 300, 1/2 in Bolt Size

Features

  • Lay in feature allows continuous loop wiring
  • Connects wide range of two parallel conductors
  • Separates conductors to bar surface

Available on backorder

Compare
Categories: ,
General Specification
Product Description Bronze, Ground Clamps Connector-Types OGM and OGMS, Conductor Range 500 – 300,
Catalog ID OGMS-4
Application Ground Clamp Connector
UPC
Brand OEC
Product Specification
Connector OGM and OGMS
Standard Material Copper
Standard Finish Natural
Torque 825 in-lbs
Dimensions
Product Length 2.42 in
Product Width 1.63 in
Product Height 2.55 in
Bolt Size 1/2 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
Conductor Size 500 – 300 Kcmil
CU Conductor Size 300 Kcmil, 350 Kcmil, 400 Kcmil, 500 Kcmil
CU Sol Conductor Range 300 Kcmil – 500 Kcmil
CU Str Conductor Range 300 Kcmil, 350 Kcmil, 400 Kcmil, 500 Kcmil
CU Str Conductor Range 300 Kcmil – 500 Kcmil
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
