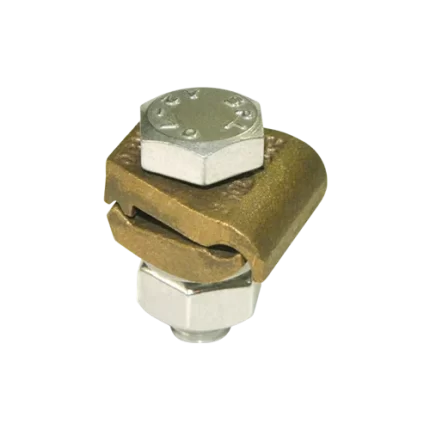

OGMS-2
Back to products
OGMS-4

OGMS-3

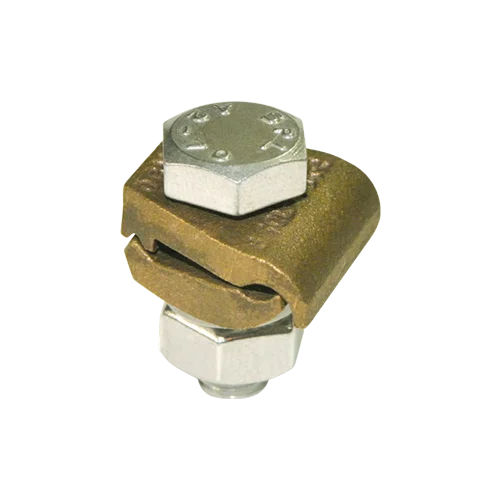

OEC OGMS-3, Bronze, Ground Clamps Connector-Types OGM and OGMS, Conductor Range 250 – 2/0, 1/2 in Bolt Size

Features

  • Lay in feature allows continuous loop wiring
  • Connects wide range of two parallel conductors
  • Separates conductors to bar surface

Available on backorder

Compare
Categories: ,
General Specification
Product Description Bronze, Ground Clamps Connector-Types OGM and OGMS, Conductor Range 250 – 2/0,
Catalog ID OGMS-3
Application Ground Clamp Connector
UPC 840449610077
Brand OEC
Product Specification
Connector OGM and OGMS
Standard Material Copper
Standard Finish Natural
Torque 650 in-lbs
Dimensions
Product Length 1.96 in
Product Width 1.46 in
Product Height 2.30 in
Bolt Size 1/2 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
Conductor Size 250 Kcmil – 2/0 AWG
CU Conductor Size 2/0 AWG, 3/0 AWG, 250 Kcmil
CU Sol Conductor Range 2/0 AWG – 250 Kcmil
CU Str Conductor Range 2/0 AWG, 3/0 AWG, 250 Kcmil
CU Str Conductor Range 2/0 AWG – 250 Kcmil
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
