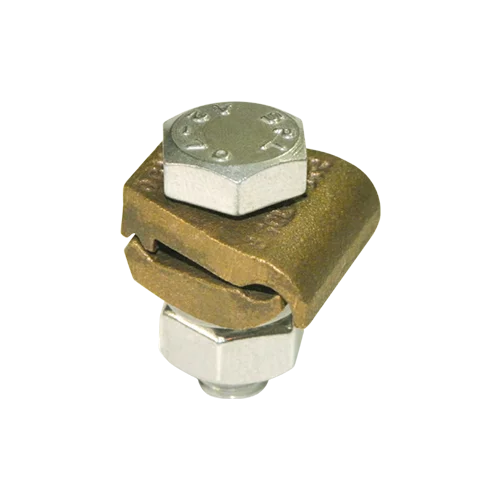

OEC OGMS-2, Bronze, Ground Clamps Connector-Types OGM and OGMS, Conductor Range 2/0 – 4, 3/8 in Bolt Size

Features

  • Lay in feature allows continuous loop wiring
  • Connects wide range of two parallel conductors
  • Separates conductors to bar surface

Available on backorder

Compare
Categories: ,
General Specification
Product Description Bronze, Ground Clamps Connector-Types OGM and OGMS, Conductor Range 2/0 – 4,
Catalog ID OGMS-2
Application Ground Clamp Connector
UPC 840449610244
Brand OEC
Product Specification
Connector OGM and OGMS
Standard Material Copper
Standard Finish Natural
Torque 385 in-lbs
Dimensions
Product Length 1.61 in
Product Width 1.12 in
Product Height 1.73 in
Bolt Size 3/8 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
Conductor Size 2/0 – 4 AWG
CU Conductor Size 4 AWG, 3 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG
CU Sol Conductor Range 4 – 2/0 AWG
CU Str Conductor Range 4 AWG, 3 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG
CU Str Conductor Range 4 – 2/0 AWG
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
