OEC PAE4141

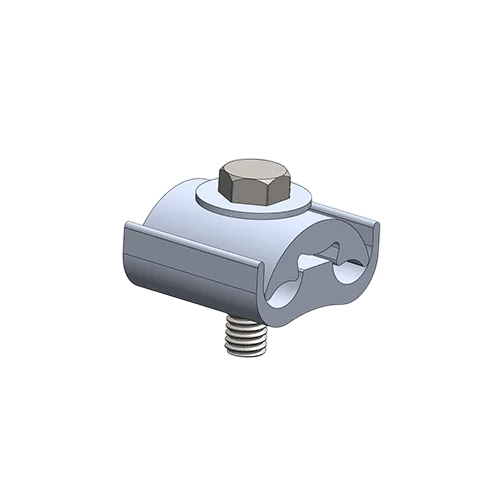

OEC PAE4141, 2-4/0 AWG, 3/8 in Steel Bolt, Aluminum Parallel Groove Clamp, Dual Rated

Features

  • Manufactured from high strength aluminum alloy
  • Clear plated
  • Range taking
  • Suitable for use with either copper or aluminum conductors
  • Provides low contact resistance
  • Provides ease of installation

Available on backorder

Compare
Category:
General Specification
Product Description 2-4/0 AWG, 3/8 in Steel bolt, Aluminum Parallel Groove Clamp Dual Rated
Catalog ID OEC PAE4141
UPC
Application Mechanical
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Standard
Conductor Material Aluminum
Standard Material Steel
Standard Finish Tin plated
Color Silver
No of Conductors 2
No of Poles 1
Wire Orientation Parallel
Dimensions
Product Length 1.51 in
Product Height 1.69 in
Product Width 1.71 in
Steel bolt 3/8 in
Conductor Related
CU Conductor Size 4/0 – 2 AWG
Certifications and Compliance
cULus Under UL
Standard 486A/B
RoHS Yes

Related Products

50011

OEC 50011, Bronze, Ground Clamp, Conductor Range 4 - 8, 1/2 - 1 in Pipe Size
Add to enquiry
Quick view

OE-01S

OEC OE-01S, Bronze, Ground Clamp, Conductor Range 2 - 10, 1/2 - 1 in Pipe Size
Add to enquiry
Quick view

OE-02

OEC OE-02, Bronze, Ground Clamp, Conductor Range 2 - 10, 1 - 1/4 - 2 in Pipe Size
Add to enquiry
Quick view

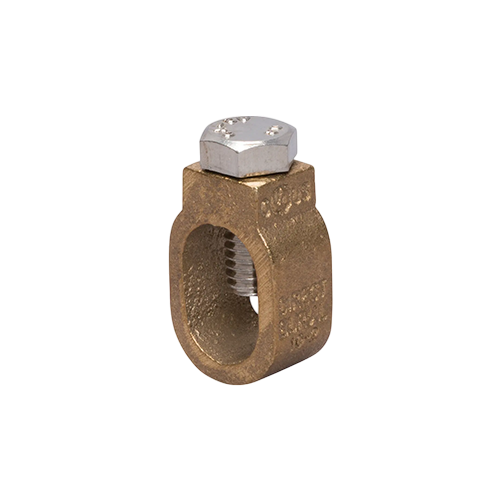

OE-1/2

OEC OE-1/2, Bronze, Ground Rod Clamp, Conductor Range 2 - 10, Ground Rod Size 1/2 in, Rebar Size 3/8 in
Add to enquiry
Quick view

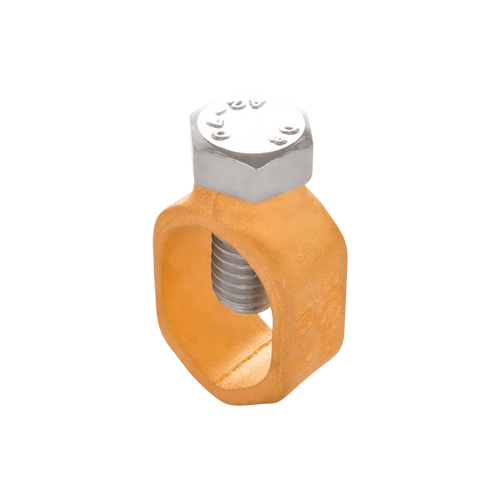

OEC MRCH
