98554A

OEC-CBB-N-0180438-U

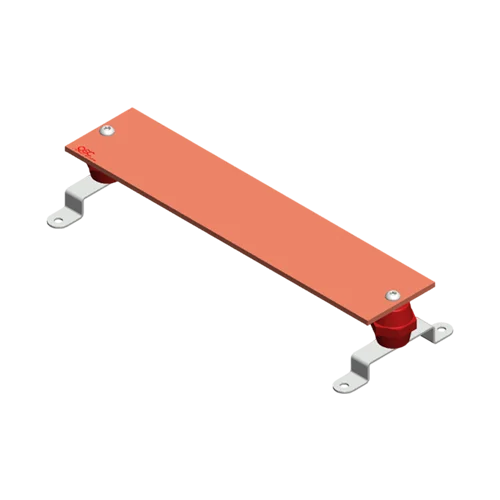

OEC OEC-CBB-N-0180438-U, Copper, Grounding Bus Bar Assembly, Pattern NN, 4 in Wide, 18 in Length, 3/8 in Thick

Features

  • Assembled with tamper proof bolts and insulators
  • UL Listed
  • All holes are 7/16 in unless otherwise specified

Available on backorder

CatalogSales Drawing
Compare
Category:
General Specification
Product Description Copper, Grounding Bus Bar Assembly, Pattern NN
Catalog ID OEC-CBB-N-0180438-U
UPC
Hole Pattern NN
Brand OEC
Product Specification
Connection Mechanical
Inclusive Insulators, Brackets
Standard Material Copper
Standard Finish Natural
Hardware Material Stainless Steel
Dual Rated Yes
Dimensions
Product Length 18 in
Product Width 4 in
Product Thickness 3/8 in
Mounting Hole 0.438 in
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
Features
  • Offers a centralized and convenient location for grounding and bonding.
  • Custom bars can be designed and produced according to the customer’s specifications.
