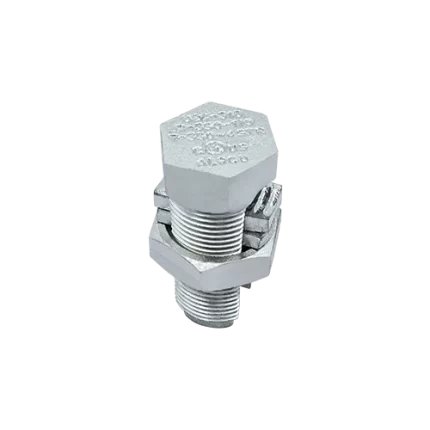

OEC-31D
Back to products

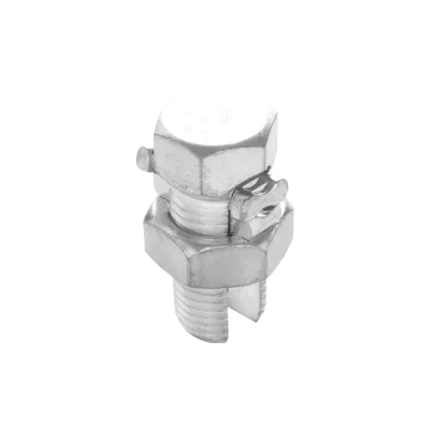

OEC-39D

OEC-34D

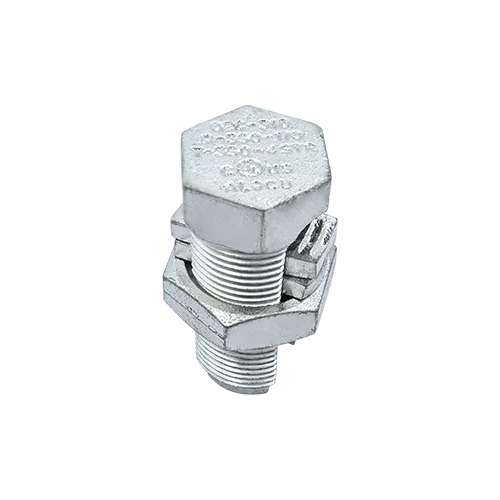

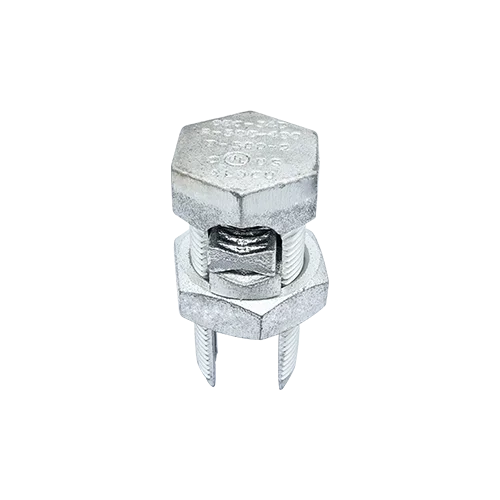

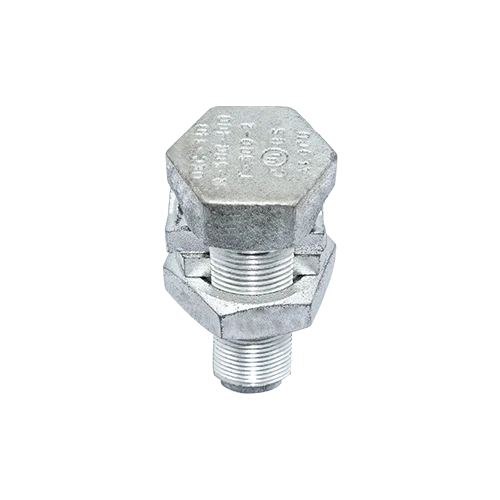

OEC-34D, Copper, Split Bolt Connector, Main/Tap Conductor Range 500 – 400, Cu Only

Features

  • Manufactured from high strength Copper alloy
  • UL486A/B Listed for Wire Connectors
  • UL467 Listed for grounding and bonding applications
  • Suitable for use with either copper or aluminum conductors
  • Suitable for use with Copper conductors suffix D
  • Provides low contact resistance
  • Provides ease of installation

Available on backorder

CatalogSales Drawing
Compare
Category:
General Specification
Product Description Copper, Split Bolt Connector, Run/Tap Conductor Range 500 – 400
Catalog ID OEC-34D
UPC 840449602690
Application Direct Burial Cables
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Split Bolt
Conductor Type Copper
Standard Material Copper
Standard Finish Tin-Plated
Torque 825 in-lbs
Dimensions
Length (L) 2.91 in
Nut Width (W) 1.79 in
Bot Width (W1) 1.62 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90?C
Conductor Related
CU Solid Tap Size 400 Kcmil
CU Str Main Size 400 – 500 Kcmil
CU Str Tap Range 400 Kcmil, 450 Kcmil, 500 Kcmil
CU Str Tap Size 400 Kcmil
Certifications and Compliance
cULus Yes
RoHS Yes
