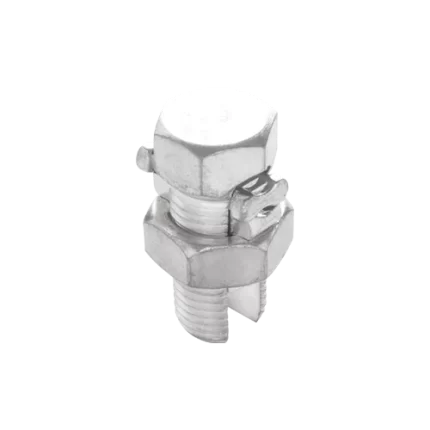

OEC-27D
Back to products
OEC-31D

OEC-29D

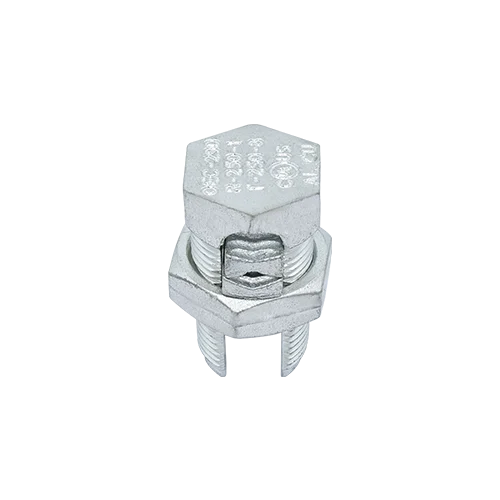

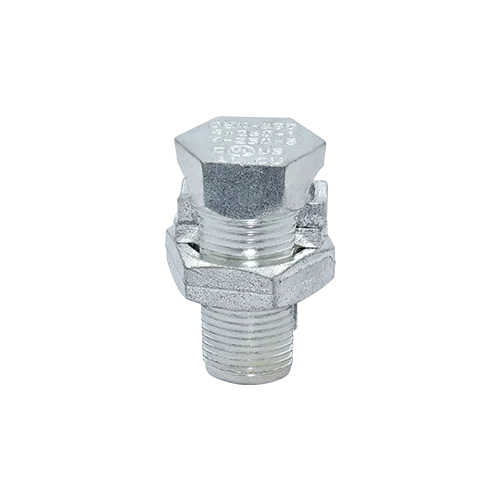

OEC-29D, Copper, Split Bolt Connector, Main/Tap Conductor Range 250 – 1 , Cu Only

Features

  • Manufactured from high strength Copper alloy
  • UL486A/B Listed for Wire Connectors
  • UL467 Listed for grounding and bonding applications
  • Suitable for use with either copper or aluminum conductors
  • Suitable for use with Copper conductors suffix D
  • Provides low contact resistance
  • Provides ease of installation

Available on backorder

CatalogSales Drawing
Compare
Category:
General Specification
Product Description Copper, Split Bolt Connector, Run/Tap Conductor Range 250 – 1
Catalog ID OEC-29D
UPC 840449602652
Application Direct Burial Cables
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Split Bolt
Conductor Type Copper
Standard Material Copper
Standard Finish Tin-Plated
Torque 650 in-lbs
Dimensions
Length (L) 2.40 in
Nut Width (W) 1.18 in
Bot Width (W1) 1.08 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90?C
Conductor Related
CU Solid Tap Size 1 AWG
CU Str Main Size 1 AWG – 250 Kcmil
CU Str Tap Range 250 Kcmil, 300 Kcmil, 350 Kcmil, 400 Kcmil, 450 Kcmil, 500 Kcmil, 550 Kcmil, 600 Kcmil, 650 Kcmil, 700 Kcmil, 750 Kcmil
CU Str Tap Size 1 AWG
Certifications and Compliance
cULus Yes
RoHS Yes
