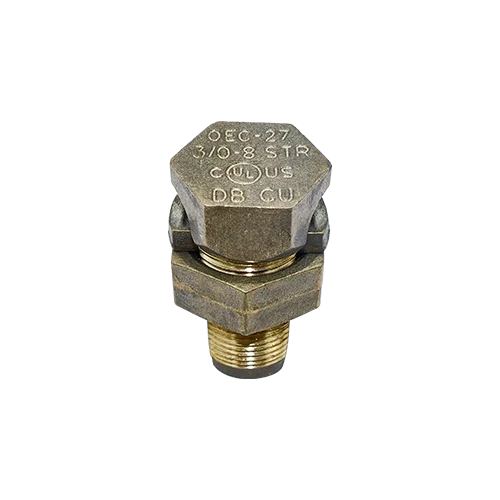

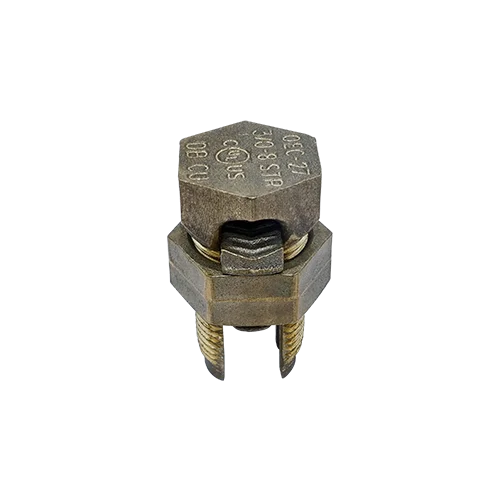

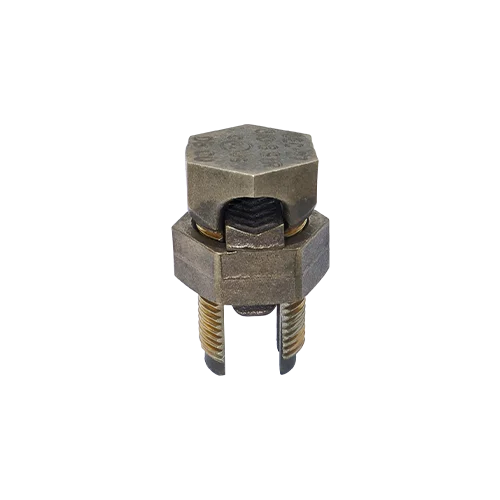

OEC-27, Copper, Split Bolt Connector, Main/Tap Conductor Range 3/0 – 1, Cu Only

Features

  • Manufactured from high strength Copper alloy
  • UL486A/B Listed for Wire Connectors
  • UL467 Listed for grounding and bonding applications
  • Suitable for use with either copper or aluminum conductors
  • Suitable for use with copper conductors suffix D
  • Provides low contact resistance
  • Provides ease of installation

Available on backorder

Catalog
Compare
Categories: ,
General Specification
Product Description Copper, Split Bolt Connector, Run/Tap Conductor Range 3/0 – 1
Catalog ID OEC-27
UPC 840449602621
Application Direct Burial Cables
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Split Bolt
Conductor Type Copper
Standard Material Copper
Standard Finish Natural
Torque 500 in-lbs
Dimensions
Product Length 2.16 in
Product Width 1.00 in
Product Height 1.32 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90?C
Conductor Related
CU Solid Tap Size 8 AWG
CU Str Main Size 1 – 3/0 AWG
CU Str Tap Range 8 AWG, 6 AWG, 4 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG
CU Str Tap Size 8 AWG
Certifications and Compliance
cULus Yes
RoHS Yes
