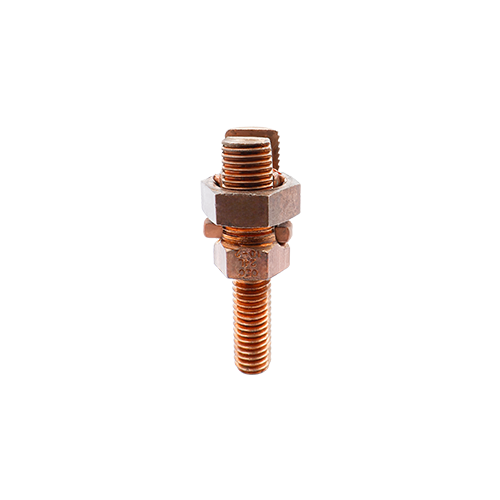

OEC OEC-24L, Copper, Service Post Connectors, Double Wire Long Stud, Conductor Range 2 – 10, 3/8 in Stud, Cu Only

Features

  • Suitable for direct burial in earth or concrete
  • UL467 & 486A Listed for grounding and bonding and wire connector applications
  • For grounding of steel structures, fence posts and tapping cables from bus bar

Available on backorder

Compare
Category:
General Specification
Product Description Copper, Service Post Connectors, Double Wire Long Stud, Conductor Range 2 – 10
Catalog ID OEC-24L
UPC 840449609903
Application Splice, Tap, Ground
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Service Post
Conductor Type Copper
Standard Material Copper
Dimensions
Product Length 2.38 in
Product Width 1.10 in
Product Height 0.74 in
Stud Size 3/8 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90?C
Conductor Related
CU Conductor Solid Size 2 – 10 AWG
CU Solid Tap Range 10 AWG, 8 AWG, 6 AWG, 4 AWG, 2 AWG
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
