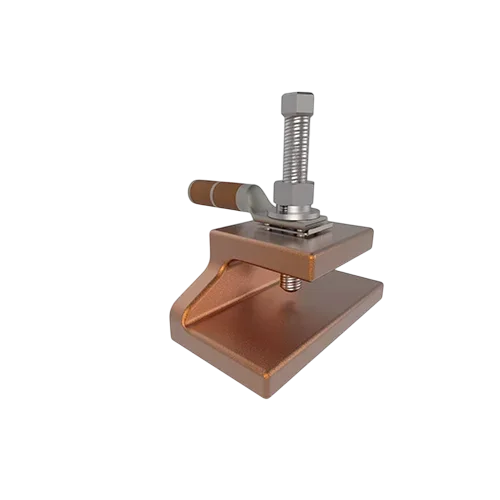

OEC GTC1H1/0C, One Hole, Tower Ground Clamp, Conductor Range 1/0 AWG

Features

  • No Drilling Required Facilitates quick installation without compromising structural integrity.
  • UL467 Listed Complies with safety standards for grounding and bonding.
  • Direct Burial Rated Suitable for underground or exposed installations.
  • 360° Conductor Alignment Allows flexible positioning of conductors (Only for One Hole).
  • Broad Compatibility Works with various conductor sizes and steel shapes

Available on backorder

Compare
Categories: ,
General Specification
Product Description One Hole, Tower Ground Clamp, Conductor Range 1/0 AWG
Catalog ID GTC1H1/0C
Application Structural Steel Grounding
UPC
Brand OEC
Product Specification
Standard Material Copper
Standard Finish Natural
Compression Lug 98069
Dimensions
Flange Thickness 1/8 to 5/8 in
Bolt Torque 100 in
Nut Torque 180 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
Conductor Size 1/0 AWG
Certifications and Compliance
cULus Yes
