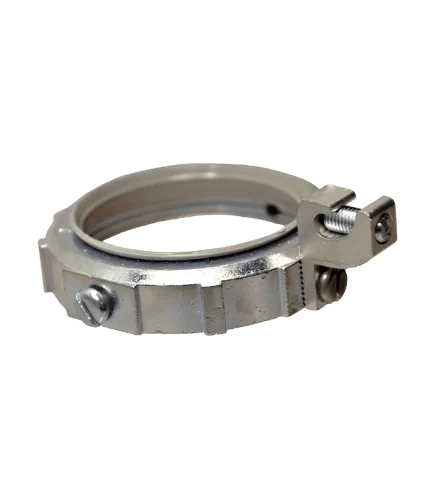

FZ234

FZ233

OEC FZ233, 1 in, Rigid-IMC, Grounding Bushing Insulated Zinc Die Cast with Aluminum Lay-In Lug

Features

  • Liner is rated flame retardant to 105°C
  • UL listed for use with copper or aluminum grounding conductor
  • Assembled with set screws jumper lug

Available on backorder

Compare
Category:
General Specification
Product Description Rigid Grounding Bushing Insulated Zinc Die Cast with Aluminum Lay-In Lug, 1 in
Catalog ID FZ233
UPC
Application Commercial
Brand OEC
Product Specification
Conduit Type Rigid-IMC
Style Rigid Conduit Bushing
Trade Size 1 in
Standard Material Zinc die-cast/plastic insulator
Standard Finish Zinc-electroplated
Insulator Insulated
Dimensions
Product Length/Depth 2.323 in
Product Height 0.965 in
Product Width 0.551 in
Conductor Related
Min Wire Size 14 Sol/Str
Max Wire Size 4 Sol/Str
Certifications and Compliance
cULus Yes
RoHS Yes
Area Classification Ordinary/Non-Hazardous Location

Related Products

FZ223

OEC FZ223, 1 in, Rigid-IMC, Grounding Bushing Insulated Zinc Die Cast with Aluminum Feed-Through Lug
Add to enquiry
Quick view

FZ224

OEC FZ224, 1-1/4 in, Rigid-IMC, Grounding Bushing Insulated Zinc Die Cast with Aluminum Feed-Through Lug
Add to enquiry
Quick view

FZ225

OEC FZ225, 1-1/2 in, Rigid-IMC, Grounding Bushing Insulated Zinc Die Cast with Aluminum Feed-Through Lug
Add to enquiry
Quick view

FZ231

OEC FZ231, 1/2 in, Rigid-IMC, Grounding Bushing Insulated Zinc Die Cast with Aluminum Lay-In Lug
Add to enquiry
Quick view

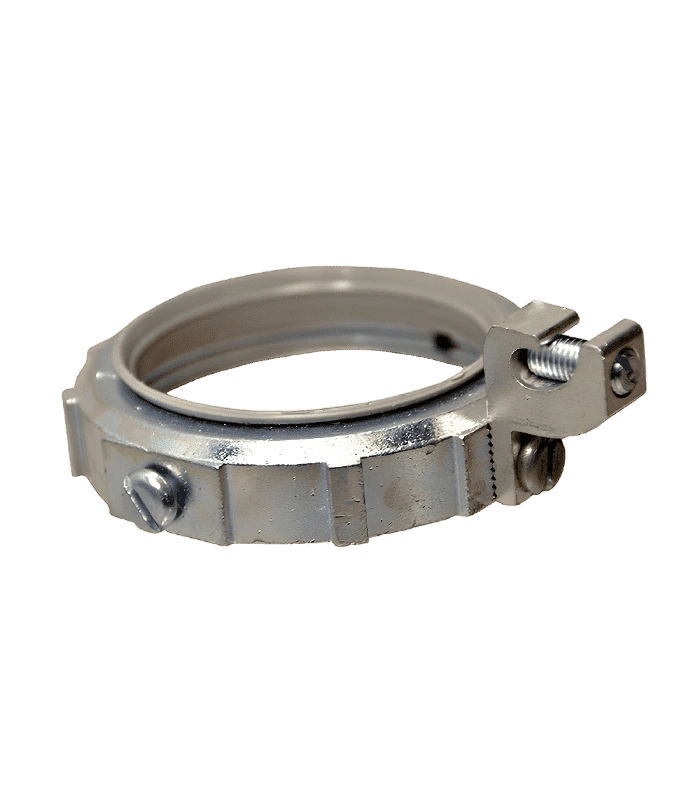

FZ234A
