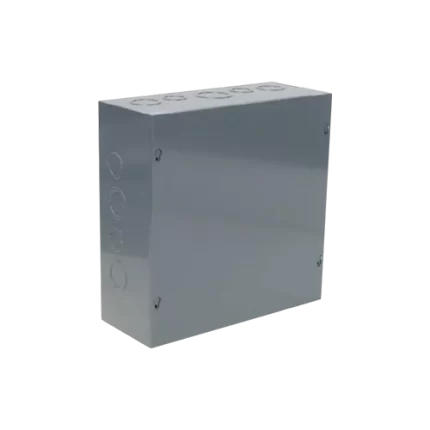

OEC ENSK12128, Junction Boxes, Type 1 Screw Cover – Steel, 5 side knockouts, 5 top-bottom knockouts, Thru holes, Powder coated.

Features

  • The casing and cover are made from durable steel material.
  • The casing come with pre-made openings on the sides, top, and bottom.
  • The cover is attached securely with sturdy combo screws that are plated for added protection.
  • Keyhole slots on the cover provide convenient access to the interior without needing to fully remove the screws.

Available on backorder

Compare
Category:
General Specification
Product Description Junction Boxes, Type 1 Screw Cover – Steel, 5 side knockouts, 5 top-bottom knockouts, Thru holes, Powder coated.
Catalog ID ENSK12128
UPC
Application Junction box
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Style Small Single Door
Model ENSK12128
Cover type Screw
Mounting method Surface
Mounting hole details Thru holes
Top and Bottom Knockouts 5
Side knockouts 5
Material Carbon Steel
Wall Thickness 16 Gauge
Finish color Painted
Color ANSI 61 gray
Dimensions
Product Width 12.00 in
Product Height 12.00 in
Product Depth 8.00 in
Certifications and Compliance
cULus Under UL
