ENS18156

ENS18126

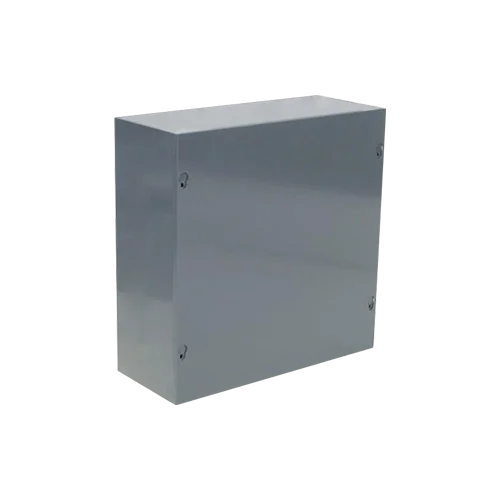

OEC ENS18126, Junction Boxes, Type 1 Screw Cover – Steel, Thru holes, Powder coated.

Features

  • The casing and cover are made from durable steel material.
  • The casing come with pre-made openings on the sides, top, and bottom.
  • The cover is attached securely with sturdy combo screws that are plated for added protection.
  • Keyhole slots on the cover provide convenient access to the interior without needing to fully remove the screws.

Available on backorder

Compare
Category:
General Specification
Product Description Junction Boxes, Type 1 Screw Cover – Steel, Thru holes, Powder coated.
Catalog ID ENS18126
UPC
Application Junction box
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification

ENS18126 Cover type Screw Mounting method Surface Mounting hole details Thru holes Material Carbon Steel Wall Thickness 16 Gauge Finish color Painted Color ANSI 61 gray

Dimensions
Product Width 12.00 in
Product Height 18.00 in
Product Depth 6.00 in
Certifications and Compliance
cULus Under UL
