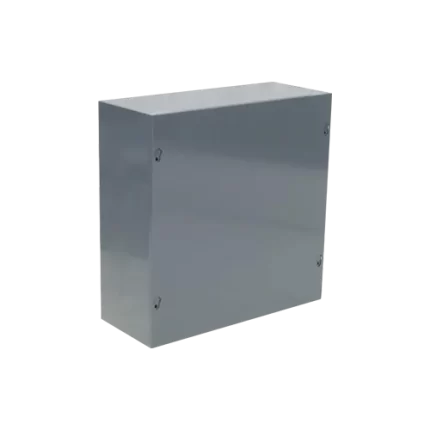

ENG666

ENG30184

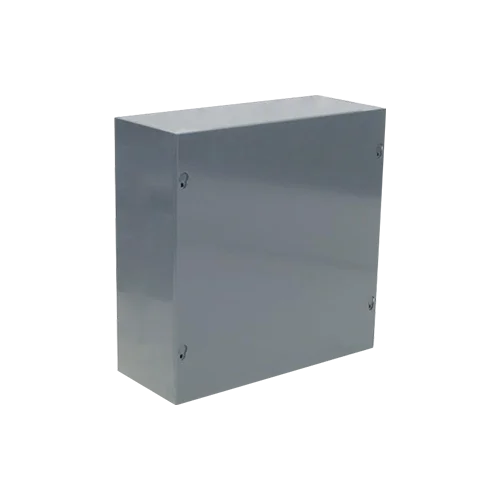

OEC ENG30184, Junction Boxes, Type 1 Screw Cover – Galvanized, Thru holes, Powder coated.

Features

  • The casing and cover are made from durable galvanized material.
  • The casing come with pre-made openings on the sides, top, and bottom.
  • The cover is attached securely with sturdy combo screws that are plated for added protection.
  • Keyhole slots on the cover provide convenient access to the interior without needing to fully remove the screws.

Available on backorder

Compare
Category:
General Specification
Product Description Junction Boxes, Type 1 Screw Cover – Galvanized, Thru holes, Powder coated.
Catalog ID ENG30184
UPC
Application Junction box
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Style Small Single Door
Model ENG30184
Cover type Screw
Mounting method Surface
Mounting hole details Thru holes
Material Galvanized
Wall Thickness 14 Gauge
Finish color Galvanized Steel
Color Gray
Dimensions
Product Width 18.00 in
Product Height 30.00 in
Product Depth 4.00 in
Certifications and Compliance
cULus Under UL
