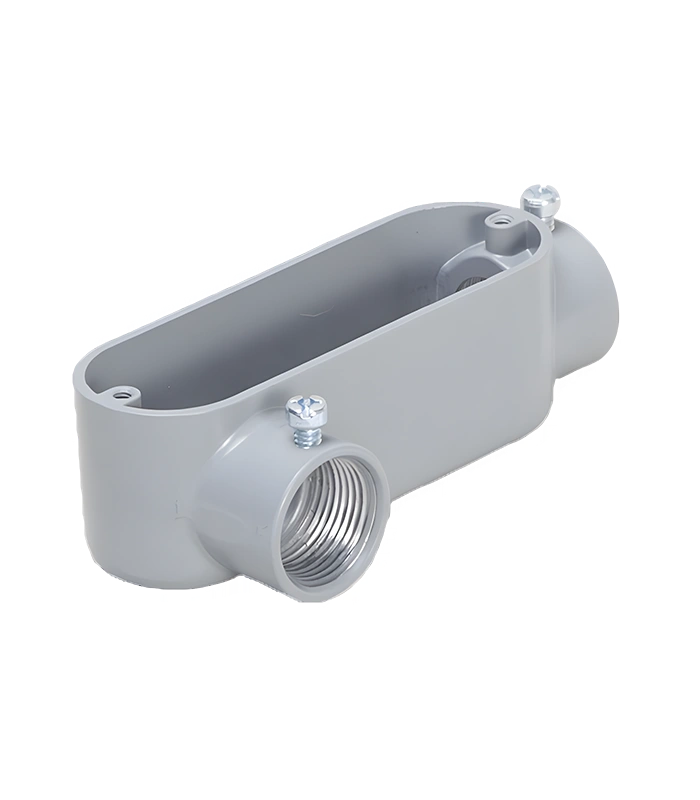

OEC Series E® ELR100CC, 1 in, Die Cast Aluminum, Type LR, EMT/Rigid/IMC, Combination Conduit Body, 12.3 Cu.in

Features

  • Threaded LR type
  • NPT hubs with set screw
  • Suitable for use in concrete

Available on backorder

Compare
Category:
General Specification
Product Description 1 in, Die Cast Aluminum, Type LR, EMT/Rigid/IMC, Combination Conduit Body
Catalog ID ELR100CC
UPC
Brand OEC
Max Number of Conductors 3
Max Conductor Size 6 Str
Inner Box Quantity
Master Box Quantity
Product Specification
Conduit Type EMT/Rigid/IMC
Trade Size 1 in
Standard Material Copper-Free Aluminum Die-cast
Cover Stamped Aluminum
Gasket Neoprene Rubber
Screw Steel
Standard Finish Premium Epoxy Powder Coated
Capacity 12.3 Cu.in
Dimensions
Product Length/Depth 6 in
Product Width 2.48 in
Product Height 2.14 in
Conductor Related
No of Conductor 3
Conductor Size 6 Str
Certifications and Compliance
Area classification Ordinary/Non-Hazardous Locations
Standard Type NEMA 3R/2020 NEC
cULus Yes
RoHS Yes
