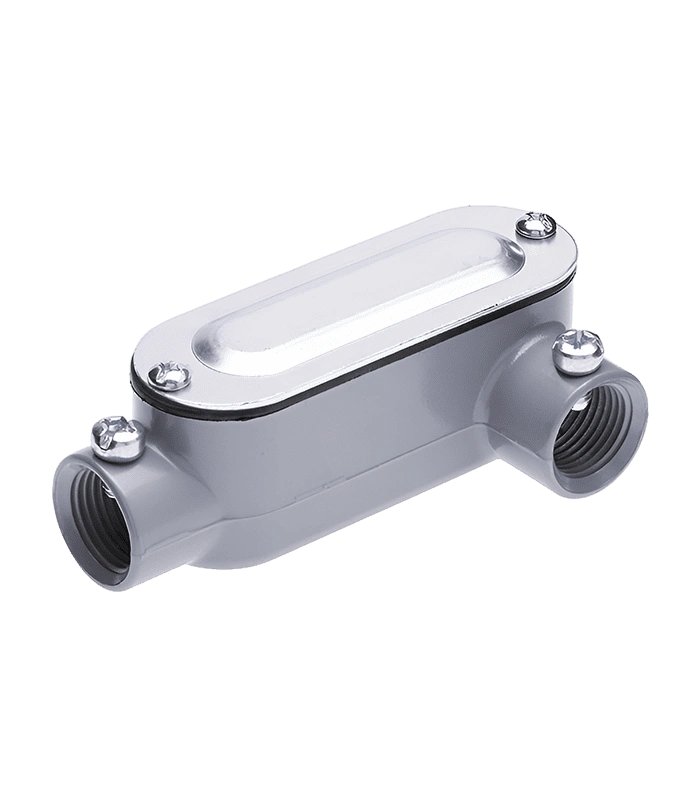

OEC Series E® ELL300CCCG, 3 in, Die Cast Aluminum, Type LL, EMT/Rigid/IMC, Combination Conduit Body with Cover & Gasket, 182.5 Cu.in

Features

  • Threaded LL type with cover and gasket
  • NPT hubs with set screw
  • Suitable for use in concrete
  • Suitable for use in wet locations

Available on backorder

Compare
Category:
General Specification
Product Description 3 in, Die Cast Aluminum, Type LL, EMT/Rigid/IMC, Combination Conduit Body with Cover & Gasket
Catalog ID ELL300CCCG
UPC 840449605196
Brand OEC
Max Number of Conductors 3
Max Conductor Size 250 Kcmil
Inner Box Quantity
Master Box Quantity
Product Specification
Conduit Type EMT/Rigid/IMC
Trade Size 3 in
Standard Material Copper-Free Aluminum Die-cast
Cover Stamped Aluminum
Gasket Neoprene Rubber
Screw Steel
Standard Finish Premium Epoxy Powder Coated
Capacity 182.5 Cu.in
Dimensions
Product Length/Depth 12.84 in
Product Width 6 in
Product Height 4.9 in
Conductor Related
No of Conductor 3
Conductor Size 250 Kcmil
Certifications and Compliance
Area classification Ordinary/Non-Hazardous Locations
Standard Type NEMA 3R/2020 NEC
cULus Yes
RoHS Yes
