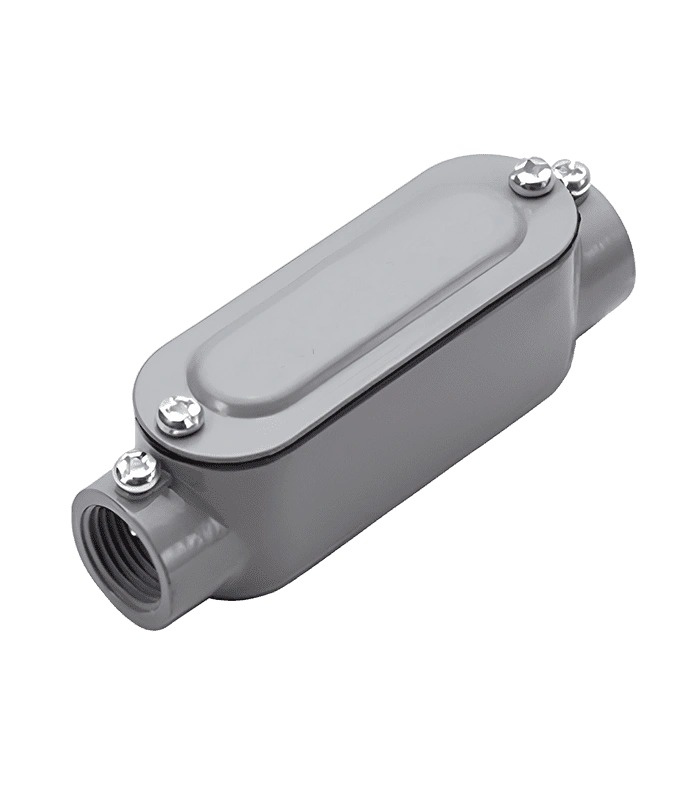

OEC Series E® ELC300CCCG, 3 in, Die Cast Aluminum, Type LC, EMT/Rigid/IMC, Combination Conduit Body with Cover & Gasket, 182.5 Cu.in
Available on backorder
| Product Description | 3 in, Die Cast Aluminum, Type LC, EMT/Rigid/IMC, Combination Conduit Body with Cover & Gasket |
| Catalog ID | ELC300CCCG |
| UPC | 840449605097 |
| Brand | OEC |
| Max Number of Conductors | 3 |
| Max Conductor Size | 250 Kcmil |
| Inner Box Quantity | |
| Master Box Quantity |
| Conduit Type | EMT/Rigid/IMC |
| Trade Size | 3 in |
| Standard Material | Copper-Free Aluminum Die-cast |
| Cover | Stamped Aluminum |
| Gasket | Neoprene Rubber |
| Screw | Steel |
| Standard Finish | Premium Epoxy Powder Coated |
| Capacity | 182.5 Cu.in |
| Product Length/Depth | 13.45 in |
| Product Width | 4.45 in |
| Product Height | 4.9 in |
| No of Conductor | 3 |
| Conductor Size | 250 Kcmil |
| Area classification | Ordinary/Non-Hazardous Locations |
| Standard Type | NEMA 3R/2020 NEC |
| cULus | Yes |
| RoHS | Yes |
