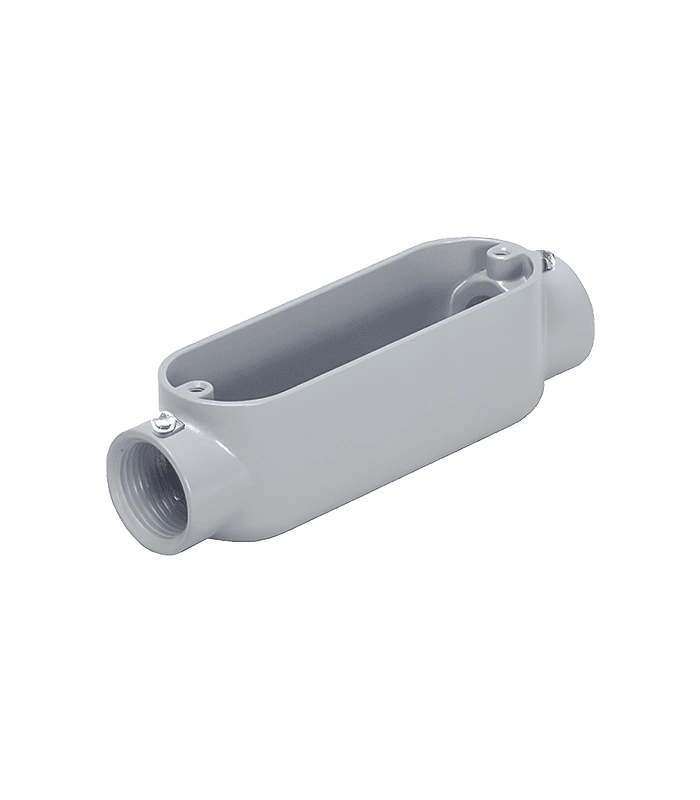

OEC Series E® ELC100CC, 1 in, Die Cast Aluminum, Type LC, EMT/Rigid/IMC, Combination Conduit Body, 12.3 Cu.in
Available on backorder
| Product Description | 1 in, Die Cast Aluminum, Type LC, EMT/Rigid/IMC, Combination Conduit Body |
| Catalog ID | ELC100CC |
| UPC | |
| Brand | OEC |
| Max Number of Conductors | 3 |
| Max Conductor Size | 6 Str |
| Inner Box Quantity | |
| Master Box Quantity |
| Conduit Type | EMT/Rigid/IMC |
| Trade Size | 1 in |
| Standard Material | Copper-Free Aluminum Die-cast |
| Cover | Stamped Aluminum |
| Gasket | Neoprene Rubber |
| Screw | Steel |
| Standard Finish | Premium Epoxy Powder Coated |
| Capacity | 12.3 Cu.in |
| Product Length/Depth | 6.46 in |
| Product Width | 1.75 in |
| Product Height | 1.89 in |
| No of Conductor | 3 |
| Conductor Size | 6 Str |
| Area classification | Ordinary/Non-Hazardous Locations |
| Standard Type | NEMA 3R/2020 NEC |
| cULus | Yes |
| RoHS | Yes |
