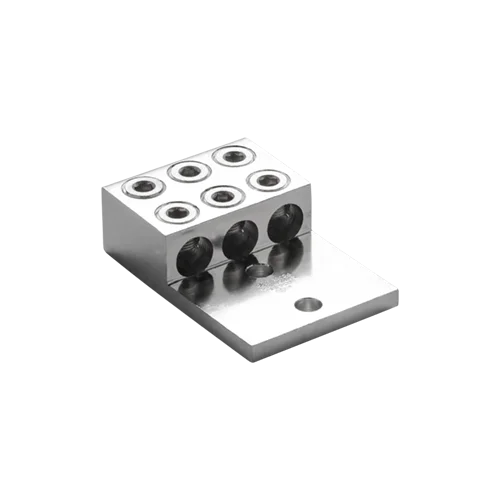

OEC 99025, Aluminium Mechanical Lug, Conductor Range 800 – 300, 3 Port, 2 Hole, 1/2 in Stud, Tin Plated, AL9CU
Available on backorder
| Product Description | Aluminium Mechanical Lug, Conductor Range 800 – 300, 3 Port, 2 Hole, 1/2 in Stud |
| Catalog ID | 99025 |
| UPC | |
| Application | Terminating Connector |
| Brand | OEC |
| Inner Box Quantity | |
| Master Box Quantity |
| Connector Type | Mechanical |
| Conductor Type | Aluminium / Copper |
| Standard Material | Aluminium |
| Standard Finish | Electro Tin Plated |
| Number of Holes | 2 |
| Number of Conductor | 3 |
| Screw Type | Allen Hex |
| Torque | 400 in-lbs |
| Product Length | 2.75 in |
| Product Width | 3.84 in |
| Product Height | 1.62 in |
| Stud Size | 1/2 in |
| Stud Hole | 0.56 in |
| Voltage – Maximum | 35000 |
| Voltage Rating | 35 kV |
| Temperature Rating | 90°C |
| Conductor Size | 800 – 300 Kcmil |
| AL Conductor Str Range | 300 Kcmil, 350 Kcmil, 400 Kcmil, 500 Kcmil, 600 Kcmil, 700 Kcmil, 750 Kcmil, 800 Kcmil |
| AL Conductor Str Size | 300 – 800 Kcmil |
| CU Conductor Sol/Str Range | 300 Kcmil, 350 Kcmil, 400 Kcmil, 500 Kcmil, 600 Kcmil, 700 Kcmil, 750 Kcmil, 800 Kcmil |
| CU Conductor Sol/Str Size | 800 – 300 Kcmil |
| cULus | Yes |
| CSA | Yes |
| RoHS | Yes |
