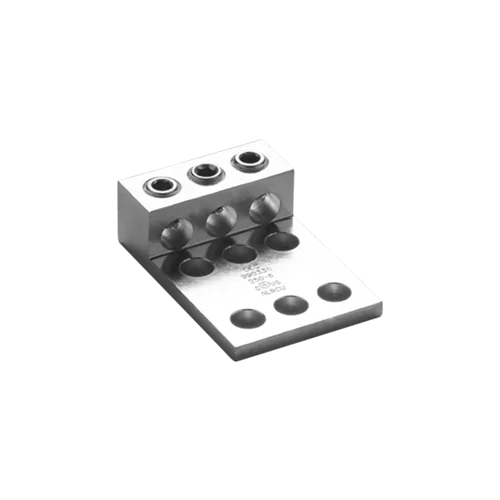

OEC 99024A-6, Aluminium Mechanical Lug, Conductor Range 600 – 2, 3 Port, 6 Hole, 1/2 in Stud, Tin Plated, AL9CU

Features

  • Manufactured from high strength aluminum alloy
  • Chamfered entry
  • Electro-Tin plated for corrosion resistance
  • UL486A/B Listed for Wire Connectors
  • Suitable for use with either copper or aluminum conductors
  • Provides low contact resistance
  • Provides ease of installation

Available on backorder

Compare
Category:
General Specification
Product Description Aluminium Mechanical Lug, Conductor Range 600 – 2, 3 Port, 6 Hole, 1/2 in Stud
Catalog ID 99024A-6
UPC
Application Terminating Connector
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Mechanical
Conductor Type Aluminium / Copper
Standard Material Aluminium
Standard Finish Electro Tin Plated
Number of Holes 6
Number of Conductor 3
Screw Type Allen Hex
Torque 400 in-lbs
Dimensions
Product Length 4.58 in
Product Width 3.76 in
Product Height 1.62 in
Stud Size 1/2 in
Stud Hole 0.56 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
Conductor Size 600 Kcmil – 2 AWG
AL Conductor Str Range 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 250 Kcmil, 300 Kcmil, 350 Kcmil, 400 Kcmil, 500 Kcmil, 600 Kcmil
AL Conductor Str Size 2 AWG – 600 Kcmil
CU Conductor Sol/Str Range 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 250 Kcmil, 300 Kcmil, 350 Kcmil, 400 Kcmil, 500 Kcmil, 600 Kcmil
CU Conductor Sol/Str Size 600 Kcmil – 2 AWG
Certifications and Compliance
cULus Yes
CSA Yes
RoHS Yes
