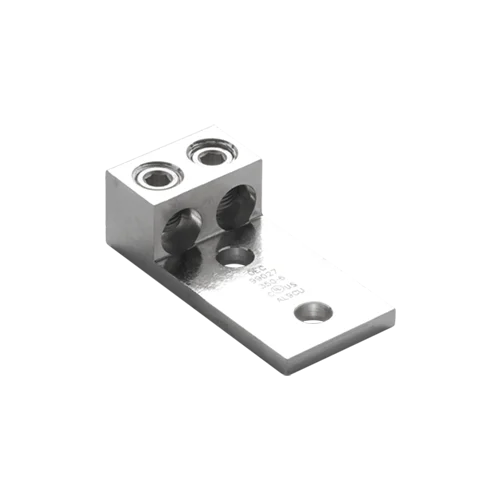

OEC 99018A, Aluminium Mechanical Lug, Conductor Range 1000 – 350, 2 Port, 2 Hole, 1/2 in Stud, Tin Plated, AL9CU
Available on backorder
| Product Description | Aluminium Mechanical Lug, Conductor Range 1000 – 350, 2 Port, 2 Hole, 1/2 in Stud |
| Catalog ID | 99018A |
| UPC | |
| Application | Terminating Connector |
| Brand | OEC |
| Inner Box Quantity | |
| Master Box Quantity |
| Connector Type | Mechanical |
| Conductor Type | Aluminium / Copper |
| Standard Material | Aluminium |
| Standard Finish | Electro Tin Plated |
| Number of Holes | 2 |
| Number of Conductor | 2 |
| Screw Type | Allen Hex |
| Torque | 500 in-lbs |
| Product Length | 4.62 in |
| Product Width | 3.19 in |
| Product Height | 1.94 in |
| Stud Size | 1/2 in |
| Stud Hole | 0.56 in |
| Voltage – Maximum | 35000 |
| Voltage Rating | 35 kV |
| Temperature Rating | 90°C |
| Conductor Size | 1000 – 350 Kcmil |
| AL Conductor Str Range | 350 Kcmil, 400 Kcmil, 500 Kcmil, 600 Kcmil, 700 Kcmil, 750 Kcmil, 800 Kcmil, 900 Kcmil, 1000 Kcmil |
| AL Conductor Str Size | 350 – 1000 Kcmil |
| CU Conductor Sol/Str Range | 350 Kcmil, 400 Kcmil, 500 Kcmil, 600 Kcmil, 700 Kcmil, 750 Kcmil, 800 Kcmil, 900 Kcmil, 1000 Kcmil |
| CU Conductor Sol/Str Size | 1000 – 350 Kcmil |
| cULus | Yes |
| CSA | Yes |
| RoHS | Yes |
