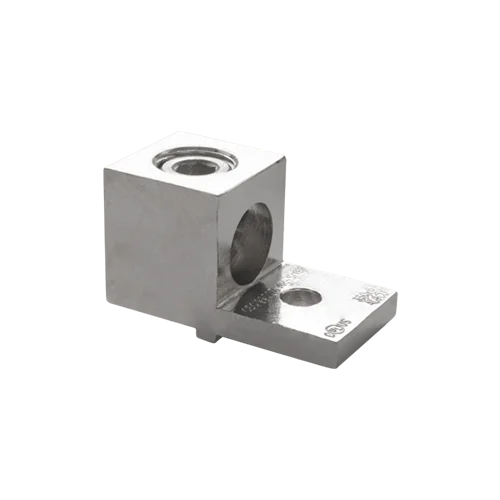

OEC 99004B-AR, Aluminium Mechanical Lug, Anti Rotation, Conductor Range 3/0 – 14, 1 Port, 1 Hole, 5/16 in Stud, Tin Plated, AL9CU
Available on backorder
| Product Description | Aluminium Mechanical Lug, Conductor Range 3/0 – 14, 1 Port, 1 Hole, 5/16 in Stud |
| Catalog ID | 99004B-AR |
| UPC | |
| Application | Terminating Connector |
| Brand | OEC |
| Inner Box Quantity | |
| Master Box Quantity |
| Connector Type | Mechanical |
| Conductor Type | Aluminium / Copper |
| Standard Material | Aluminium |
| Standard Finish | Electro Tin Plated |
| Number of Holes | 1 |
| Number of Conductor | 1 |
| Screw Type | Allen Hex |
| Torque | 120 in-lbs |
| Product Length | 1.80 in |
| Product Width | 0.80 in |
| Product Height | 0.95 in |
| Stud Size | 5/16 in |
| Stud Hole | 0.33 in |
| Voltage – Maximum | 35000 |
| Voltage Rating | 35 kV |
| Temperature Rating | 90°C |
| Conductor Size | 3/0 – 14 AWG |
| AL Conductor Str Range | 14 AWG, 12 AWG, 10 AWG, 8 AWG, 6 AWG, 4 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG |
| AL Conductor Str Size | 14 – 3/0 AWG |
| CU Conductor Sol/Str Range | 14 AWG, 12 AWG, 10 AWG, 8 AWG, 6 AWG, 4 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG |
| CU Conductor Sol/Str Size | 3/0 – 14 AWG |
| cULus | Yes |
| CSA | Yes |
| RoHS | Yes |
