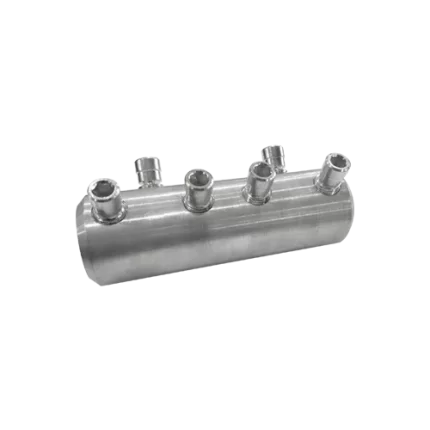

OEC 98646, Aluminum, Shear Bolt Splices, Conductor Range 750 – 600, 6 Bolts, AL9CU

Features

  • Specially designed bolts for simplified installation
  • No crimp tooling or dies required for installation
  • Range taking compact and smooth body design
  • Easy to install
  • Dual rated for copper and aluminum conductors

Available on backorder

Catalog
Compare
Category:
General Specification
Product Description Aluminum, Shear Bolt Splices, Conductor Range 750 – 600
Catalog ID 98646
UPC
Application Bolted Splices & Terminals
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Terminals
Conductor Type Aluminum
Standard Material Aluminum
No of Bolts 6
Dimensions
Product Length 7.00 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90?C
Conductor Related
Side (1) Conductor Size 600 – 750 Kcmil
Side (2) Conductor Size 600 – 750 Kcmil
Certifications and Compliance
cULus Yes
RoHS Yes
