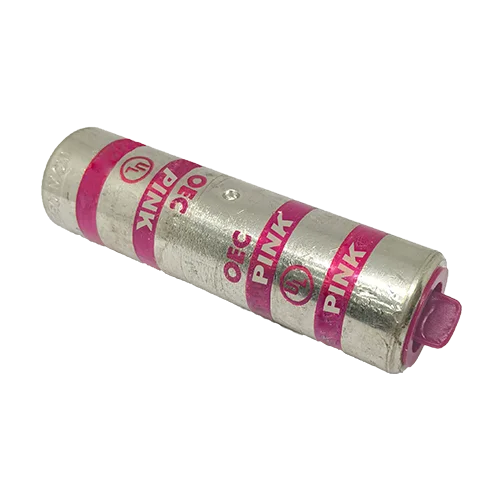

OEC 98570, 500 Kcmil, Aluminum, Long Barrel Compression Splices, Compact Class B, C, Flex Class G, H, I, K, M & DLO, Color Coded, Cu Only

Features

  • Color coded die index and crimp marks
  • Tin plating for corrosion resistance
  • Used for compact,concentric, flexible class B & C, flex class G, H, I, K, M & DLO cable

Available on backorder

Compare
Category:
General Specification
Product Description OEC 98570, 500 Kcmil, Aluminum, Long Barrel Compression Splices, Color Coded, Die Index
Catalog ID 98570
UPC
Application Wire Termination
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Aluminum
Conductor Material Aluminum Only
Standard Material Aluminum
Standard Finish Electro Tin plated
Color Pink
Barrel Type Long
Barrel Style Chamfered
Dimensions
Product Length 5.00 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
AL/CU Compact Class-B, C #500 Kcmil
AL/CU Compact Class-B, C Range #500 Kcmil
Expanded Conductor Range #500- #250 Kcmil
Flex Conductor Range #350 G, H, I, K, M, 373.3 DLO
Certifications and Compliance
cULus Yes
Standard 486A/B
CSA Yes
RoHS Yes
