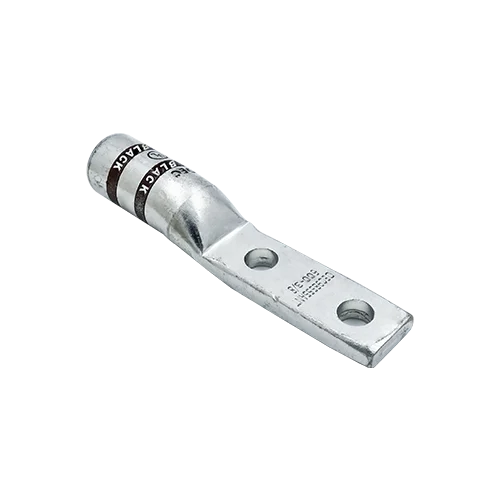

98555ANT, 600 Kcmil, 3/8 in Stud, Aluminum, Two Hole, Long Barrel Compression Lug, Narrow Tang, Compact Class B, C, Flex Class G, H, I, K, M & DLO, Color Coded, AL9CU

Features

  • Manufactured from high strength seamless aluminum tubing
  • Color coded die index and crimp marks
  • Electro-Tin plated for corrosion resistance
  • Pre-filled with oxide inhibitor and capped with color coded cap
  • UL486A/B Listed for Wire Connectors
  • UL Listed and CSA Certified with competitor?s compression tools
  • Listed for use with class B & C, flex class G, H, I, K, M & DLO cable

Available on backorder

CatalogSales Drawing
Compare
Category:
General Specification
Product Description 98555ANT, 600 Kcmil, 3/8 in Stud, Aluminum, Two Hole, Long Barrel Compression Lug, Narrow Tang, Compact Class B, C, Flex Class G, H, I, K, M & DLO, Color Coded, AL9CU
Catalog ID 98555ANT
UPC
Application Wire Termination
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Dual Rated
Conductor Material Aluminum / Copper
Standard Material Aluminum
Standard Finish Electro-Tin Plated
Color Black
Barrel Type Long
Tang Type Narrow
Barrel Style Chamfered
No of Holes 2
Dimensions
Product Length 5.94 in
Barrel Length 2.60 in
Tang width 1.44 in
Tang Thickness 0.41 in
Stud Size 3/8 in
Stud Hole 0.41 in
Hole Spacing 1 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
AL/CU Compact Class-B, C #600 kcmil
AL/CU Compact Class-B, C Range #600 kcmil
Expanded Conductor Range #600 – #250
Flex Conductor Range #400 G, H, I, K, M, 444 DLO
Certifications and Compliance
cULus Yes
Standard 486A/B
CSA Yes
RoHS Yes
