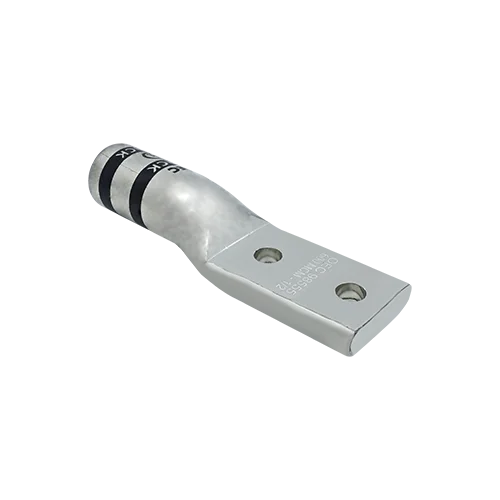

OEC 98555, 600 Kcmil, 1/2 in Stud, 1-3/4 in Hole Spacing, Aluminum, Two Hole, Long Barrel Compression Lug, Compact Class B, C, Flex Class G, H, I, K, M & DLO, Color Coded, AL9CU
Available on backorder
| Product Description | 600 Kcmil, 1/2 in Stud, 1.75 in Hole Spacing, Aluminum, Two Hole, Long Barrel Compression Lug, Color Coded, AL9CU |
| Catalog ID | 98555 |
| UPC | |
| Application | Wire Termination |
| Brand | OEC |
| Inner Box Quantity | |
| Master Box Quantity |
| Connector Type | Dual Rated |
| Conductor Material | Aluminum / Copper |
| Standard Material | Aluminum |
| Standard Finish | Electro-Tin Plated |
| Color | Black |
| Tang Type | Standard |
| Barrel Type | Long |
| Barrel Style | Chamfered |
| No of Holes | 2 |
| Product Length | 6.75 in |
| Barrel Length | 2.6 in |
| Tang width | 1.96 in |
| Tang Thickness | 0.51 in |
| Stud Size | 1/2 in |
| Stud Hole | 0.56 in |
| Hole Spacing | 1.75 in |
| Voltage – Maximum | 35000 |
| Voltage Rating | 35 kV |
| Voltage – Maximum | 35000 |
| Voltage Rating | 35 kV |
| cULus | Yes |
| Standard | 486A/B |
| CSA | Yes |
| RoHS | Yes |
