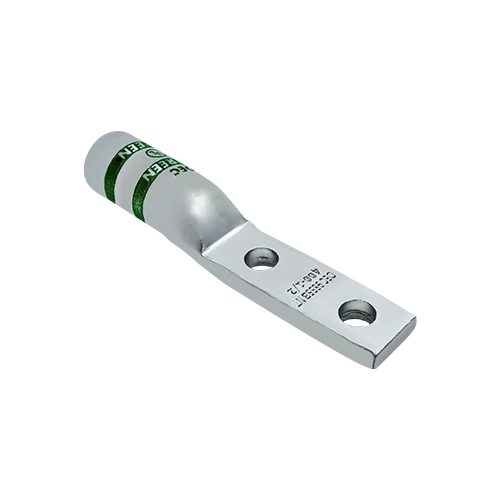

98553NT

98553NT, 400 Kcmil, 1/2 in Stud, Aluminum, Two Hole, Long Barrel Compression Lug, Narrow Tang, Compact Class B, C, Flex Class G, H, I, K, M & DLO, Color Coded, AL9CU

Features

  • Manufactured from high strength seamless aluminum tubing
  • Color coded die index and crimp marks
  • Electro-Tin plated for corrosion resistance
  • Pre-filled with oxide inhibitor and capped with color coded cap
  • UL486A/B Listed for Wire Connectors
  • UL Listed and CSA Certified with competitor?s compression tools
  • Listed for use with class B & C, flex class G, H, I, K, M & DLO cable

Available on backorder

CatalogSales Drawing
Compare
Category:
General Specification
Product Description 98553NT, 400 Kcmil, 1/2 in Stud, Aluminum, Two Hole, Long Barrel Compression Lug, Narrow Tang, Compact Class B, C, Flex Class G, H, I, K, M & DLO, Color Coded, AL9CU
Catalog ID 98553NT
UPC
Application Wire Termination
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Dual Rated
Conductor Material Aluminum / Copper
Standard Material Aluminum
Standard Finish Electro-Tin Plated
Color Green
Barrel Type Long
Tang Type Narrow
Barrel Style Chamfered
No of Holes 2
Dimensions
Product Length 6.43 in
Barrel Length 2.30 in
Tang width 1.19 in
Tang Thickness 0.51 in
Stud Size 1/2 in
Stud Hole 0.53 in
Hole Spacing 1.75
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
AL/CU Compact Class-B, C #400 Kcmil
AL/CU Compact Class-B, C Range #400 Kcmil
Expanded Conductor Range #400 – #4/0
Flex Conductor Range #300 G, H, I, K, M, 313.3 DLO
Certifications and Compliance
cULus Yes
Standard 486A/B
CSA Yes
RoHS Yes
