98552-4H

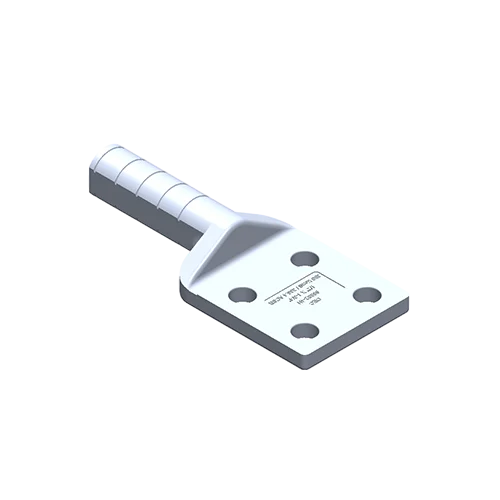

OEC 98552-4H, 1/2 in Stud, 1-3/4 in Hole Spacing, Aluminum, Four Hole, Long Barrel Compression Lug

Features

  • Manufactured from high strength aluminum
  • NEMA Standard 4-Hole Pad, 1/2 in Stud, 1-3/4 in Spacing

Available on backorder

Catalog
Compare
Category:
General Specification
Product Description 1/2 in Stud, 1-3/4 in Hole Spacing, Aluminum, Four Hole, Long Barrel Compression Lug
Catalog ID 98552-4H
UPC
Application Wire Termination
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Dual Rated
Standard Material Aluminum
Standard Finish UnPlated
Tang Type Standard
Barrel Type Long
No of Holes 4
Dimensions
Product Length 7.09 in
Barrel Length 2.74 in
Tang width 3.00 in
Tang Thickness 0.38 in
Stud Size 1/2 in
Stud Hole 0.53 in
Hole Spacing 1.75 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90?C
Conductor Related
AL Str Size #336.4 Kcmil, 350 Kcmil
AL Str Size Range #336.4 Kcmil, 350 Kcmil
ACSR Str Size #336.4 (18-1) Kcmil
ACSR Str Size Range #336.4 (18-1) Kcmil
Certifications and Compliance
cULus Yes
Standard 486A/B
CSA Yes
RoHS Yes
