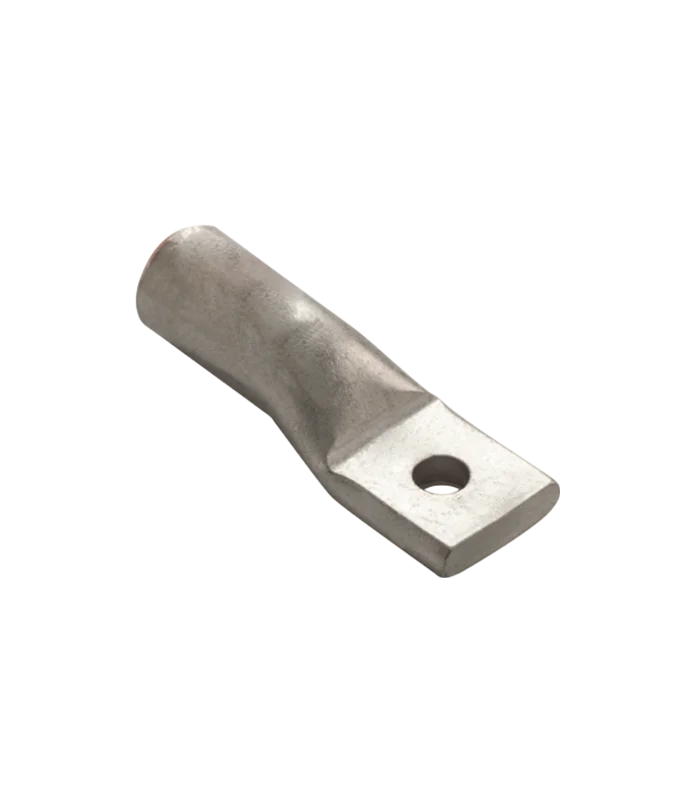

OEC 98509, 2 AWG, 5/16 Stud, Aluminum, One Hole, Long Barrel Compression Lug, Compact Class B, C, Flex Class G, H, I, K, M & DLO, Color Coded, AL9CU

Features

  • Manufactured from high strength seamless aluminum tubing
  • Color coded die index and crimp marks
  • Electro-Tin plated for corrosion resistance
  • Pre-filled with oxide inhibitor and capped with color coded cap.
  • UL486A/B Listed for Wire Connectors
  • Listed for use with class B & C, flex class G, H, I, K, M & DLO cable

Available on backorder

CatalogSales Drawing
Compare
Category:
General Specification
Product Description 2 AWG, 5/16 Stud, Aluminum, One Hole, Long Barrel Compression Lug, Color Coded, AL9CU
Catalog ID 98509
UPC
Application Wire Termination
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Dual Rated
Conductor Material Aluminum/Copper
Standard Material Aluminum
Standard Finish Electro-Tin Plated
Color Pink
Tang Type Standard
Barrel Type Long
Barrel Style Chamfered
No of Holes 1
Dimensions
Product Length 2.50 in
Barrel Length 1.20 in
Tang width 0.71 in
Tang Thickness 0.22 in
Stud Size 5/16 in
Stud Hole 0.33 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
AL/CU Compact Class-B, C #2 AWG
AL/CU Compact Class-B, C Range #2 AWG
Expanded Conductor Range #2 – #6
Flex Conductor Range #4 G, H, I, K, M, DLO
Certifications and Compliance
cULus Yes
Standard 486A/B
CSA Yes
RoHS Yes
