OEC PAE4141

OEC P5802

OEC OEC P5802, 60 Amp, Non Fused, Alternating Current AC Disconnect Pull Out, NEMA 3R, Plastic enclosure, Black

Features

  • Used to disconnect power from an air conditioning unit
  • Features a metallic enclosure for outdoor use
  • Puller type with no fuse
  • Compatible with copper or aluminum lug wire range 14-2

Available on backorder

Compare
Category:
General Specification
Product Description 60 Amp, Non Fused, Alternating Current AC Disconnect, Pull Out
Catalog ID OEC P5802
UPC 840449608753
Application Metering Attachment
Brand OEC
Product Specification
Type Pull Out
Standard Material Plastic PP+PE
Standard Material Copper
Standard Finish Black Matt Finish
Enclosure NEMA 3R
Mounting Surface Mount
Conduit Connections Knockouts
Dimensions
Product Length/Depth 5.00 in
Product Height 7.50 in
Product Width 2.50 in
Electrical Ratings
Voltage Rating Upto 240 Alternating
Amp. Rating 60 Amp
Power Rating 10 HP
Conductor Related
CU/AL for Load/Line Size 2 Str – 14 Sol/Str
CU/AL for Load/Line Size 2 Str – 14 Sol/StR

Related Products

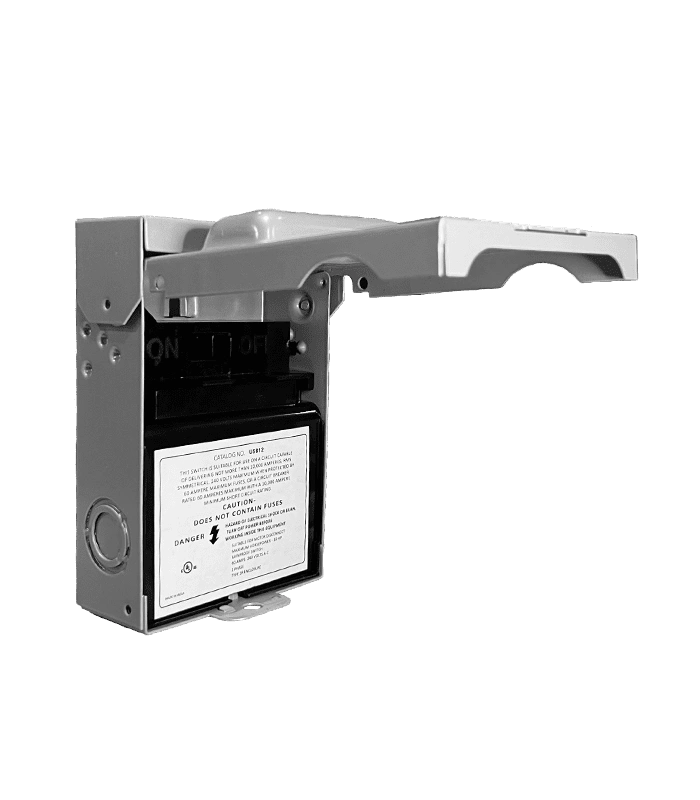

OEC5802

OEC OEC5802, 60 Amp, Non Fused, Alternating Current AC Disconnect Pull Out, NEMA 3R, Galvanized Steel enclosure, Gray Powder Coated
Add to enquiry
Quick view

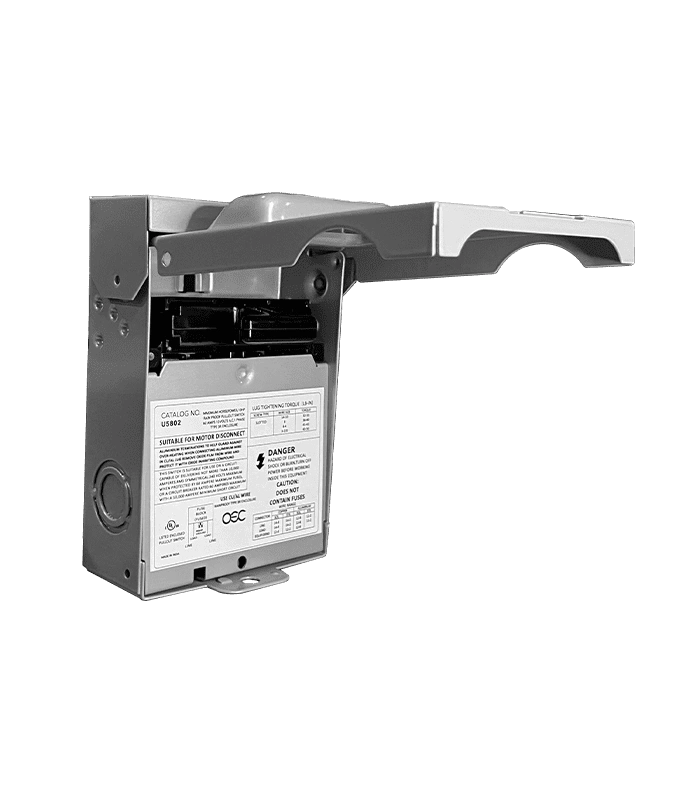

OEC5812

OEC OEC5812, 60 Amp, Non Fused, Alternating Current AC Disconnect, Non Automatic Switch, NEMA 3R, Galvanized Steel enclosure, Gray Powder Coated
Add to enquiry
Quick view

OEC5832

OEC OEC5832, 30 Amp, Non Fused, Alternating Current AC Disconnect, Non Automatic Switch, NEMA 3R, Galvanized Steel enclosure, Gray Powder Coated
Add to enquiry
Quick view

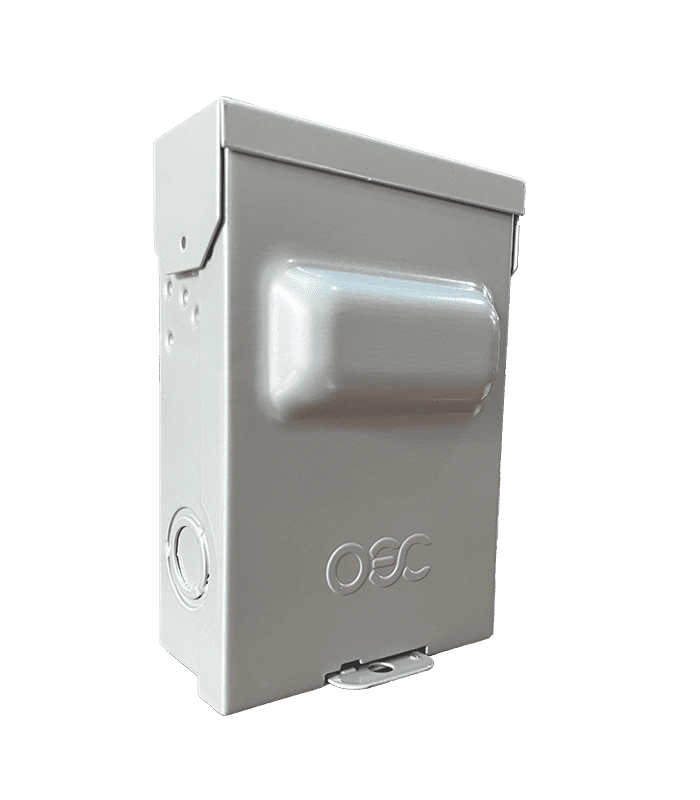

OEC5862
