98050A-S

98047E-S

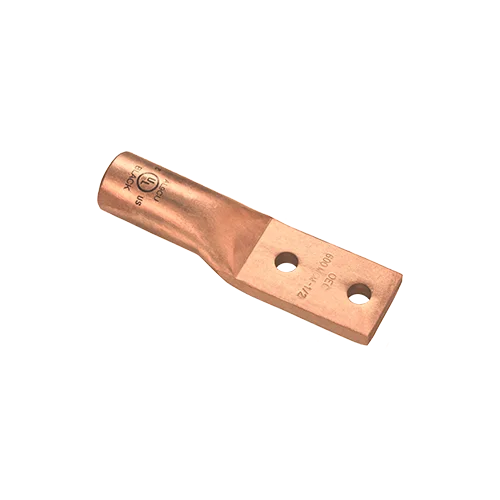

OEC 98047E-S, Copper, Irreversible Compression Terminals, Conductor Size 2 AWG, Cu Only

Features

  • Color coded die index and crimp marks
  • Tin plating for corrosion resistance
  • Dual mounting holes for maximum secureness

Available on backorder

Compare
Categories: ,
General Specification
Product Description Copper, Irreversible Grounding Link, Conductor Size 2 AWG
Catalog ID 98047E-S
UPC
Application Wire Termination
Brand OEC
Product Specification
Connector Type Terminal
Standard Material Copper
Standard Finish Natural
Dimensions
Product Length 4.21 in
Product Width 0.97 in
Product Thickness 0.26 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90?C
Conductor Related
CU Conductor Size 2 AWG
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
