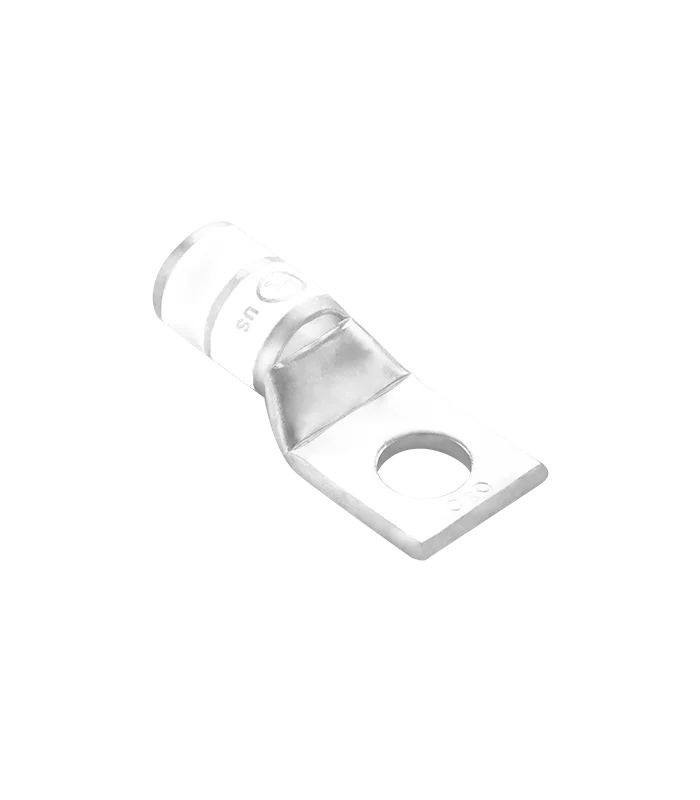

OEC 98034, 300 Kcmil, 1/2 in Stud, Copper, One Hole Standard Barrel Compression Lug, with Inspection Window, Compact Class B, C, Flex Class G, H, I, K, M & DLO, Color Coded, Cu Only

Features

  • Manufactured from high strength seamless copper tubing
  • Chamfered entry
  • Color coded die index and crimp marks
  • Electro-Tin plated for corrosion resistance
  • Inspection window to ensure full cable insertion
  • UL486A/B Listed for Wire Connectors
  • Listed for use with class B & C, flex class G, H, I, K, M & DLO cable

Available on backorder

CatalogSales Drawing
Compare
Category:
General Specification
Product Description 300 Kcmil, 1/2 in Stud, Copper, One Hole, Standard Barrel Compression Lug, Color Coded, Die Index
Catalog ID 98034
UPC 840449608814
Application Wire Termination
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Copper
Conductor Material Copper Only
Standard Material Copper
Standard Finish Electro Tin plated
Color White
Tang Type Standard
Barrel Type Standard
Barrel Style Chamfered
No of Holes 1
Dimensions
Product Length 2.48 in
Barrel Length 1.06 in
Tang width 1.19 in
Tang Thickness 0.15 in
Stud Size 1/2 in
Stud Hole 0.53 in
Hole Spacing 0.52 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
CU Compact Class-B, C #300 Kcmil
CU Compact Class-B, C Range #300 Kcmil
Expanded Conductor Range #300 – #2/0
Flex Conductor Range #250 G, H
Certifications and Compliance
cULus Yes
Standard 486A/B
CSA Yes
RoHS Yes
