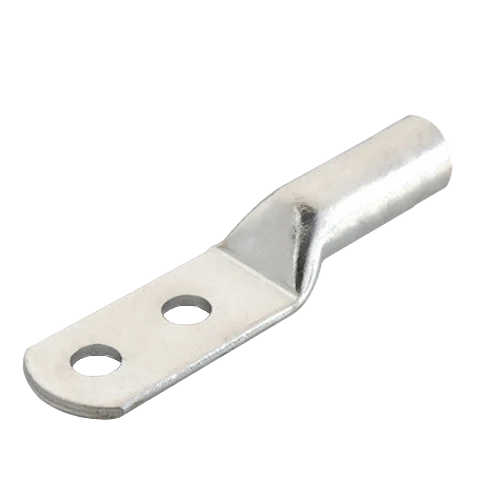

OEC 96367, 400 M14, Copper, Two Hole, Long Barrel Metric Compression Lug, Compact Class B, C, Flex Class G, H, I, K, M & DLO, Color Coded, Cu Only

Features

  • Made of high conductivity copper tubing
  • Tinned for corrosion resistance
  • With inspection hole to ensure appropriate conductor insertion

Available on backorder

Catalog
Compare
Categories: ,
General Specification
Product Description 400 mm2 Copper, Two Hole, Long Barrel Metric Compression Lug, Color Coded, Die Index
Catalog ID 96367
UPC
Application Wire Termination
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Copper
Conductor Material Copper Only
Standard Material Copper
Standard Finish Electro Tin plated
Tang Type Long
Barrel Type Long
No of Holes 2
Dimensions
Product Length 174.50
Barrel Length 65.00
Tang width 50.00
Stud Size M14
Hole Spacing 44.40
Electrical Ratings
Voltage ? Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90?C
Conductor Related
CU Size 400 mm2
