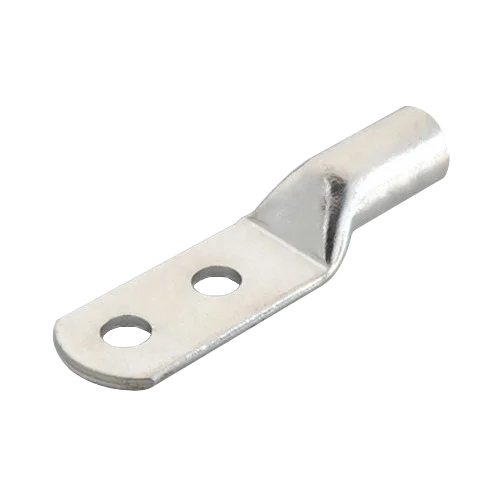

OEC 96213, 25 M10, Copper, Two Hole, Standard Barrel Metric Compression Lug, Compact Class B, C, Flex Class G, H, I, K, M & DLO, Color Coded, Cu Only

Features

  • Made of high conductivity copper tubing
  • Tinned for corrosion resistance
  • With inspection hole to ensure appropriate conductor insertion

Available on backorder

Catalog
Compare
Categories: ,
General Specification
Product Description 25 M10 Copper, Two Hole, Standard Barrel Metric Compression Lug, Color Coded, Die Index
Catalog ID 96213
UPC
Application Wire Termination
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Copper
Conductor Material Copper Only
Standard Material Copper
Standard Finish Electro Tin plated
Tang Type Standard
Barrel Type Standard
No of Holes 2
Dimensions
Product Length 50.50
Barrel Length 14.00
Tang width 14.50
Stud Size M10
Hole Spacing 16.00
Electrical Ratings
Voltage ? Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90?C
Conductor Related
CU Size 25 mm2
