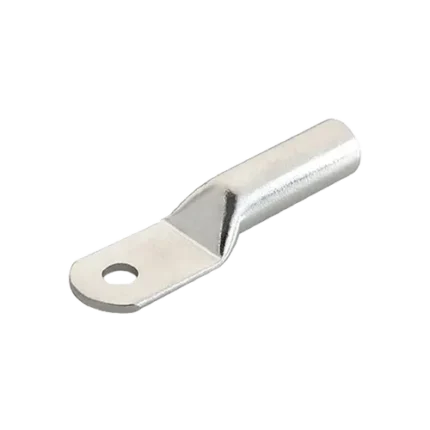

96145
Back to products
96147

96146

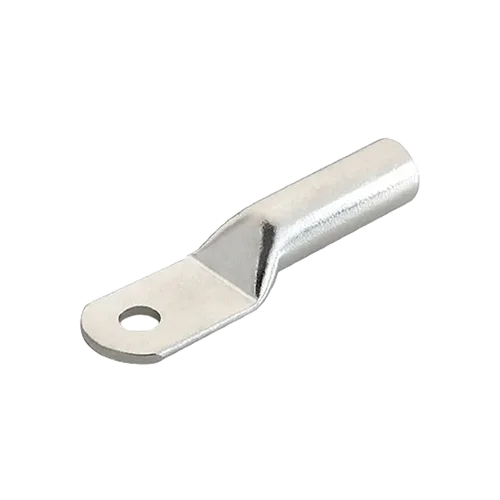

OEC 96146, 150 mm2, Copper, One Hole, Long Barrel Metric Compression Lug, Compact Class B, C, Flex Class G, H, I, K, M & DLO, Color Coded, Cu Only

Features

  • Made of high conductivity copper tubing
  • Tinned for corrosion resistance
  • With inspection hole to ensure appropriate conductor insertion

Available on backorder

Catalog
Compare
Categories: ,
General Specification
Product Description 150 mm2 Copper, One Hole, Long Barrel Metric Compression Lug, Color Coded, Die Index
Catalog ID 96146
UPC
Application Wire Termination
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Copper
Conductor Material Copper Only
Standard Material Copper
Standard Finish Electro Tin plated
Tang Type Long
Barrel Type Long
No of Holes 1
Dimensions
Product Length 81.00
Barrel Length 39.00
Tang width 30.50
Stud Size M12
Electrical Ratings
Voltage ? Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90?C
Conductor Related
CU Size 150 mm2
