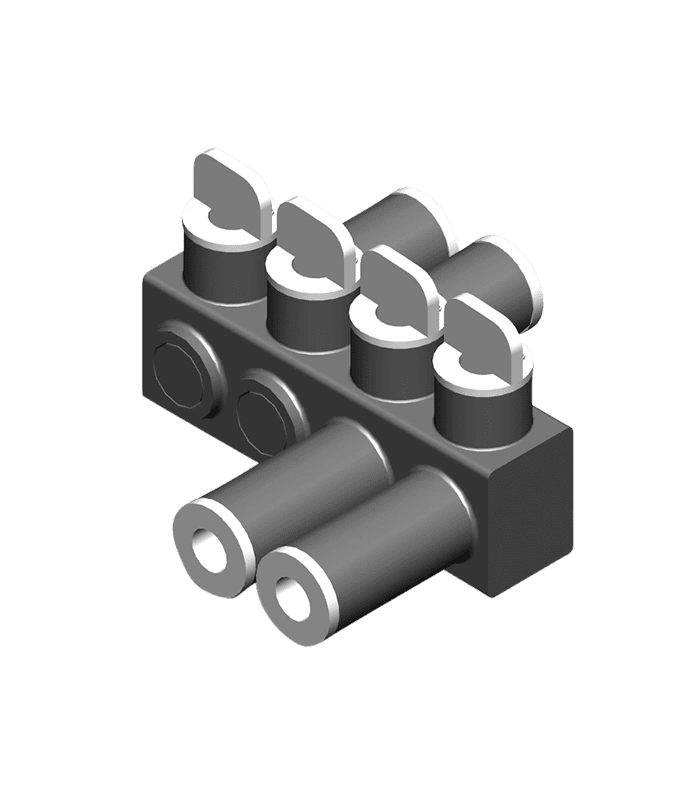

OEC 72029D, Underground Submersible Watertight Splice Connector, Conductor Range 600 – 12, 8 Ports, Dual Rated, AL9CU

Features

  • Dual rated for aluminum & copper conductors & supplied with pre-filled oxide inhibitor
  • Abrasion, chemical UV resistance
  • Range taking design
  • Encapsulated in rubber with a nominal thickness and high dielectric strength
  • Insulation UV stabilized & listed to UL94 with V0 flammability

Available on backorder

Catalog
Compare
Category:
General Specification
Product Description #600 – 12, Underground Submersible Watertight Multi Side Dual Side Connector, Multi Side Dual Side Connector, 8 Ports
Catalog ID 72029D
UPC
Application Connecting Tap
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Submersible
Standard Material Aluminum
Insulation Type Plastisol
Cable Entry Multi Side Dual Side Connector
Number of Ports 8
Key 5/16 in Hex
Dimensions
Product Length 13.47 in
Product Width 7.79 in
Product Height 3.52 in
Screw Size 7/8 in
Electrical Ratings
Voltage – Maximum 600 V
Temperature Rating
Temperature Rating -45°C to 90°C
Conductor Related
AL/CU Conductor Size 600 Kcmil – 12 AWG
AL Conductor Range 600 Kcmil – 12 AWG
CU Conductor Range 600 Kcmil – 12 AWG
Certifications and Compliance
cULus Yes
Standard 486A/B
NEC 230.46
RoHS Yes
