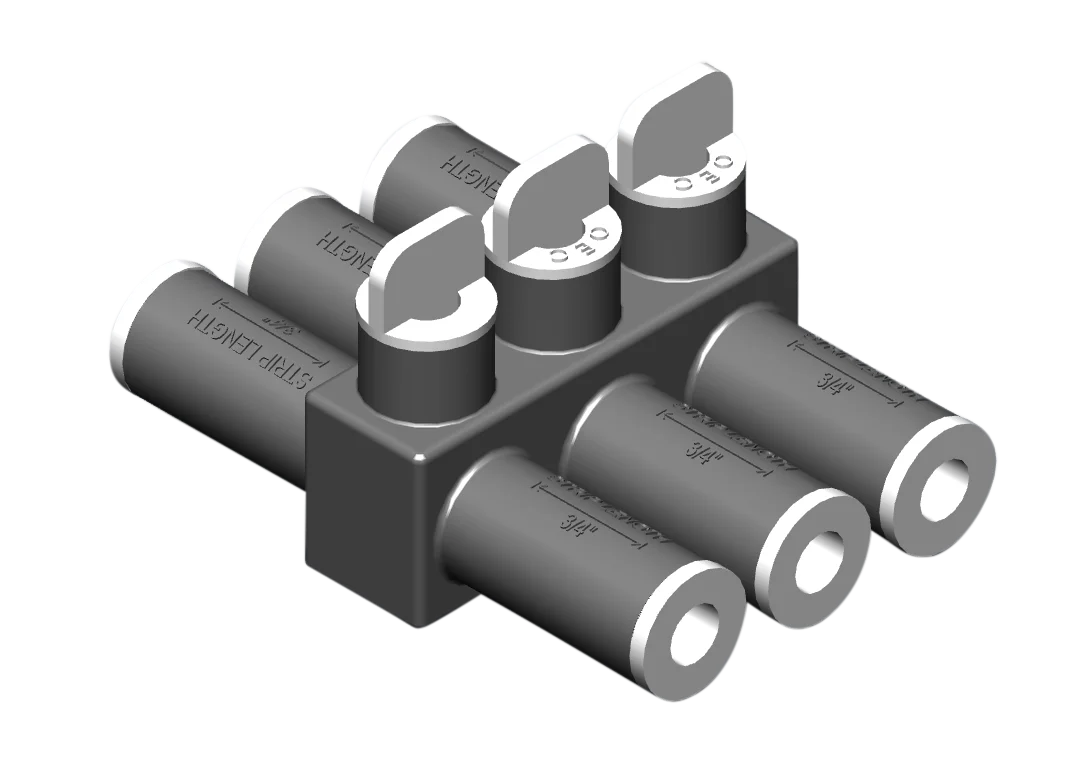

OEC Orion® 71036, UV Rated Underground Submersible Dual Side Connector, Conductor Range 750 – 12, 4 Ports, Pre-Filled Oxide Inhibitor with Closure Plugs, Dual Rated, AL9CU

Features

  • Dual rated for aluminum & copper conductors & supplied with pre-filled oxide inhibitor
  • Abrasion, chemical UV resistance
  • Range taking design
  • Encapsulated in rubber with a nominal thickness and high dielectric strength
  • Insulation UV stabilized & listed to UL94 with V0 flammability

Available on backorder

Catalog
Compare
Category:
General Specification
Product Description #750 – 12, Underground Submersible Dual Side Connector, Submersible Dual Side, 4 Ports
Catalog ID 71036
UPC
Application Connecting Tap
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Dual Side
Standard Material Aluminum
Insulation Type EPDM
Cable Entry Submersible Dual Side
Number of Ports 4
Key 3/8 in Hex
Max Torque 443
Dimensions
Product Length 7.13 in
Product Width 9.11 in
Product Height 3.90 in
Screw Size 1 in
Electrical Ratings
Voltage – Maximum 600 V
Temperature Rating
Temperature Rating -45°C to 90°C
Conductor Related
AL/CU Conductor Size 750 Kcmil – 12 Sol/Str
AL Conductor Range 750 Kcmil – 12 Sol/Str
CU Conductor Range 750 Kcmil – 12 Sol/Str
Certifications and Compliance
cULus Yes
Standard 486A/B
NEC 230.46
RoHS Yes
