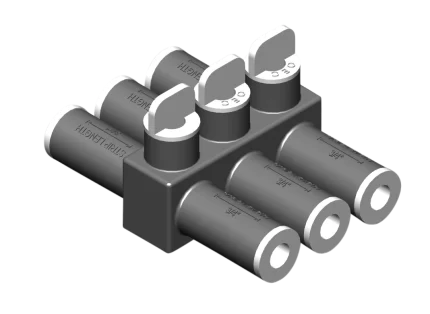

71010
Back to products
71012

71011

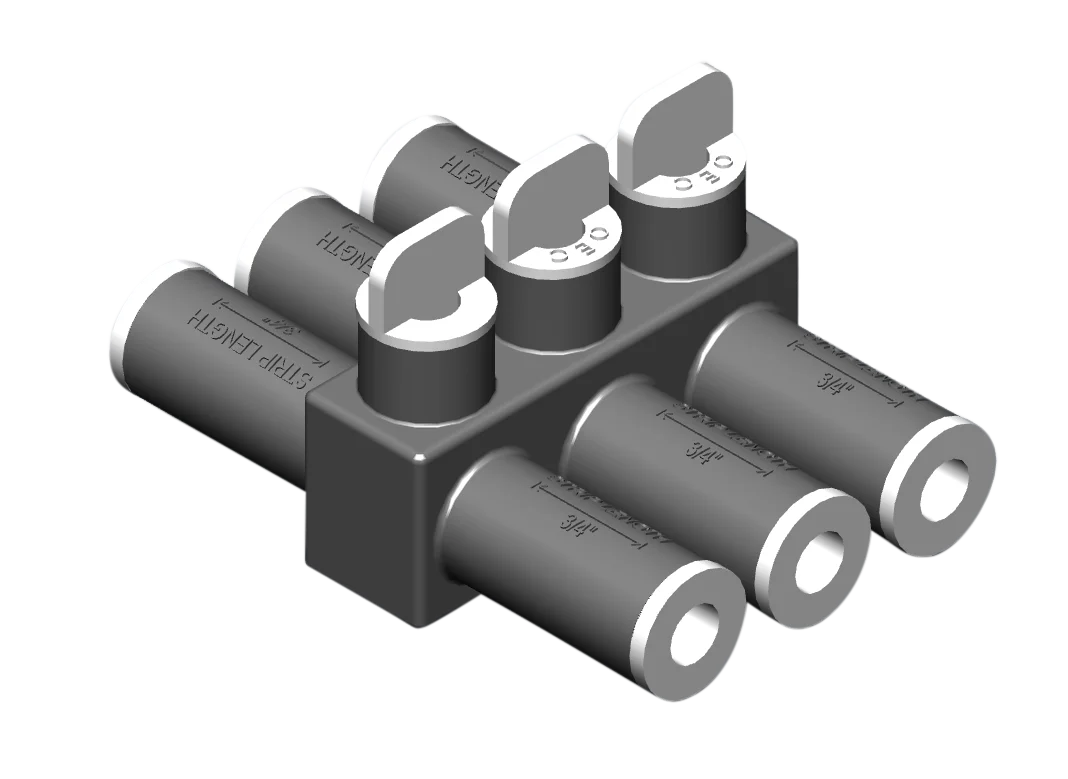

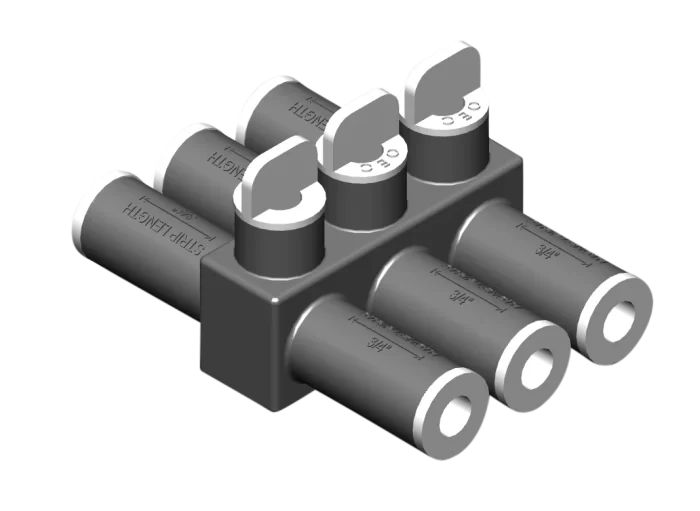

OEC Orion® 71011, UV Rated Underground Submersible Dual Side Connector, Conductor Range 2/0 – 14, 12 Ports, Pre-Filled Oxide Inhibitor with Closure Plugs, Dual Rated, AL9CU

Features

  • Dual rated for aluminum & copper conductors & supplied with pre-filled oxide inhibitor
  • Abrasion, chemical UV resistance
  • Range taking design
  • Encapsulated in rubber with a nominal thickness and high dielectric strength
  • Insulation UV stabilized & listed to UL94 with V0 flammability

Available on backorder

Catalog
Compare
Category:
General Specification
Product Description #2/0 – 14, Underground Submersible Dual Side Connector, Submersible Dual Side, 12 Ports
Catalog ID 71011
UPC
Application Connecting Tap
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Dual Side
Standard Material Aluminum
Insulation Type EPDM
Cable Entry Submersible Dual Side
Number of Ports 12
Key 3/16 in Hex
Max Torque 100
Dimensions
Product Length 10.27 in
Product Width 3.85 in
Product Height 2.10 in
Screw Size 3/8 in
Electrical Ratings
Voltage – Maximum 600 V
Temperature Rating
Temperature Rating -45°C to 90°C
Conductor Related
AL/CU Conductor Size 2/0 Str – 14 Sol/Str
AL Conductor Range 2/0 Str – 12 Sol/Str
CU Conductor Range 2/0 Str – 14 Sol/Str
Flex Conductor Range 2 – 8 Str
DLO Conductor Range 2 – 8 Str
Certifications and Compliance
cULus Yes
Standard 486A/B
NEC 230.46
RoHS Yes
