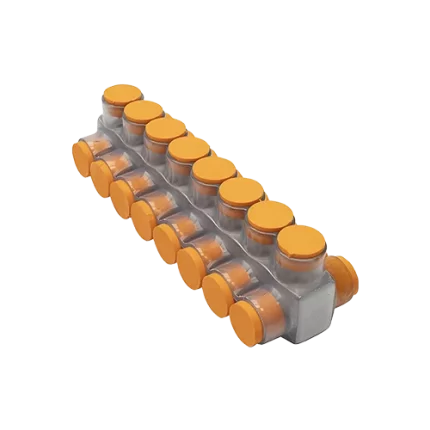

63049BC
Back to products
60010C

63050BC

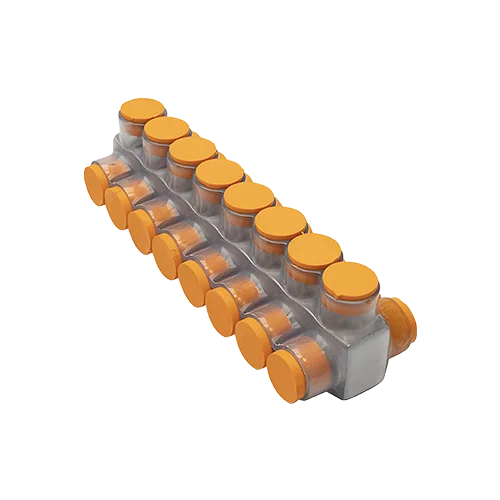

OEC Orion® 63050BC, UV Rated Clear Multi-Tap Insulated Connector, Conductor Range 600 – 6, 12 Ports, Dual Sided Entry, Pre-Filled Oxide Inhibitor with Closure Plugs, Dual Rated, AL9CU

Features

  • Insulated with high dielectric access plastisol
  • Dual rated for copper and aluminum conductors
  • UL486 A/B Listed for Wire Connectors
  • Cold temperature rated up to -45°C
  • Pre-filled with oxide inhibitor prevents oxidation moisture and contaminants from entering area
  • Supplied with removable access plugs
  • Black insulation is UV resistant
  • Insulation UV stabilized & listed to UL94 with V0 flammability

Available on backorder

CatalogSales Drawing
Compare
Category:
General Specification
Product Description #600 – 6, Clear Multi-Tap Connector, Dual Sided, 12 Ports
Catalog ID 63050BC
UPC
Application Connecting Tap
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Insulated Multi-Tap
Standard Material Aluminum
Insulation Type Plastisol
Cable Entry Dual Sided
Number of Ports 12
Key 5/16 in Hex
Max Torque
Dimensions
Product Length 16.80 in
Product Width 3.00 in
Product Height 2.90 in
Screw Size 7/8 in
Electrical Ratings
Voltage – Maximum 600 V
Temperature Rating
Temperature Rating -45°C to 90°C
Conductor Related
AL/CU Conductor Size 600 Kcmil – 6 Str
AL Conductor Range Str (Primary, Run, Main, Line) 600 Kcmil – 6 Str
CU Conductor Range Str (Primary, Run, Main, Line) 600 Kcmil – 6 Str
Flex Conductor Range 350 – 250 Kcmil
DLO Conductor Range 373 – 250 Kcmil
Certifications and Compliance
cULus Yes
Standard 486A/B
NEC 230.46
RoHS Yes
