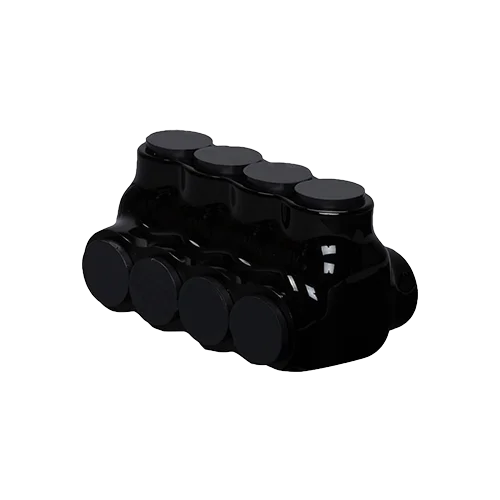

OEC Orion® 63002A, UV Rated Black Multi-Tap Insulated Connector, Conductor Range 4 – 14, 4 Ports, Dual Sided Entry, Pre-Filled Oxide Inhibitor with Closure Plugs, Dual Rated, AL9CU

Features

  • Insulated with high dielectric access plastisol
  • Dual rated for copper and aluminum conductors
  • UL486 A/B Listed for Wire Connectors
  • Cold temperature rated up to -45°C
  • Pre-filled with oxide inhibitor prevents oxidation moisture and contaminants from
  • Supplied with removable access plugs
  • Black insulation is UV resistant
  • Insulation uv stabilized & listed to UL94 with flammability V0

Available on backorder

CatalogSales Drawing
Compare
Category:
General Specification
Product Description #4 – 14, Black Multi-Tap Connector, Dual Sided Entry, 4 Ports
Catalog ID 63002A
UPC
Application Connecting Tap
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Insulated Multi-Tap
Standard Material Aluminum
Insulation Type Plastisol
Cable Entry Dual Sided Entry
Number of Ports 4
Key 1/8 in Hex
Max Torque
Dimensions
Product Length 2.25 in
Product Width 1.31 in
Product Height 1.38 in
Screw Size 1/4 in
Electrical Ratings
Voltage – Maximum 600 V
Temperature Rating
Temperature Rating 90°C
Cold Temperature Rating -45°C
Conductor Related
AL/CU Conductor Size 4 Str – 14 Sol/Str
AL Conductor Range Str (Primary, Run, Main, Line) 4 Str – 14 Sol/Str
CU Conductor Range Str (Primary, Run, Main, Line) 4 Str – 14 Sol/Str
Flex Conductor Range 8 Str
DLO Conductor Range 8 Str
Certifications and Compliance
cULus Yes
Standard 486A/B
NEC 230.46
RoHS Yes
